Pollak 64-100 Heavy-Duty 40 Amp 12V Relay & Socket Kit – 5-Pin SPDT with Pre-Wired Connector

Professional Switching Performance for High-Load Circuits
The Pollak 64-100 is a heavy-duty 40 Amp Relay and Socket Kit engineered for demanding 12VDC electrical systems. This 5-Pin Single Pole Double Throw (SPDT) configuration is the industry standard for reliable switching, making it the perfect solution for managing high-draw accessories like auxiliary lighting, electric fans, and motor circuits on trucks, trailers, and RVs.

Streamlined Wiring with Pre-Wired Socket

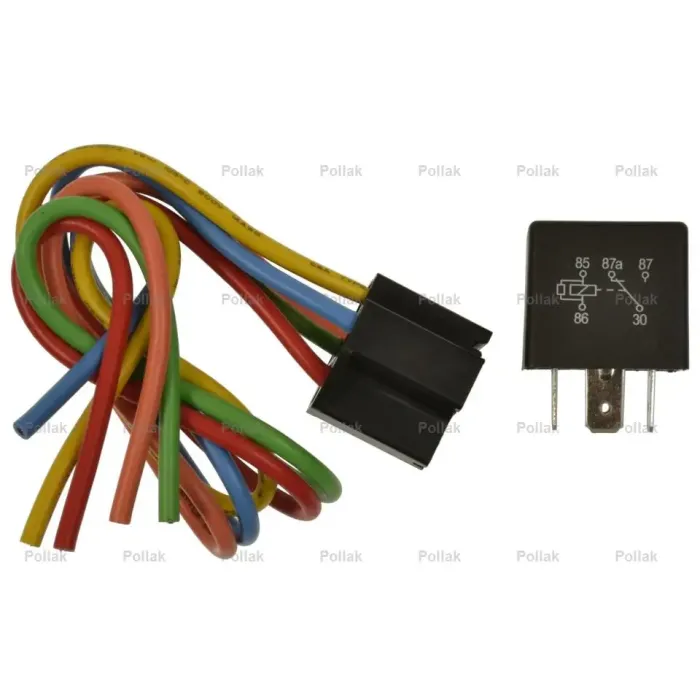

This kit is designed to save time and ensure a secure electrical connection. The 64-100 includes:

• High-Capacity 40A Relay: A robust 5-pin SPDT relay capable of handling significant current loads.

• Heavy-Duty Connector Socket: A precision-molded socket that ensures a tight, vibration-resistant fit for the relay.

• Color-Coded Pigtail Harness: Pre-installed wire leads allow for fast splicing into your existing vehicle wiring, reducing installation errors.

Built for the Rigors of Fleet Service
Pollak components are built to withstand the high-vibration and temperature-heavy environments of professional trucking. The 64-100 kit provides a cleaner, more reliable alternative to using individual spade connectors, protecting your connections from the terminal back-out and corrosion common in exposed wiring.

Key Features & Benefits:

• 5-Pin SPDT Versatility: Supports both Normally Open (NO) and Normally Closed (NC) circuit configurations.

• 40 Amp Rating: Safely manages high-surge currents for motors and high-intensity lighting.

• Reliable Connection: The included socket prevents loose connections and simplifies future relay replacements.

• Universal 12V Compatibility: Ideal for automotive, marine, agricultural, and heavy-duty truck applications.

• OEM Quality: Manufactured by Pollak to meet rigorous industry standards for long-term durability.

Technical Specifications:

• Part Number: 64-100 (Package No. 64-100P)

• Voltage: 12 VDC

• Current Rating: 40 Amps

• Type: Single Pole Double Throw (SPDT)

• Terminals: 5-Pin

• Kit Contents: (1) 40A Relay, (1) Pre-Wired Connector Socket
