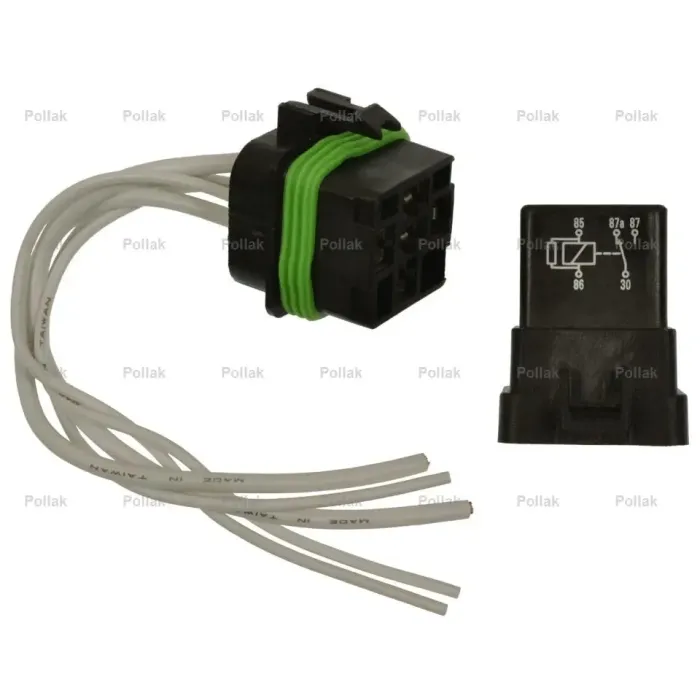

Pollak 64-101 Weather Resistant 40 Amp 12V Relay Kit – 5-Pin SPDT with Sealed Connector

Ultimate Environmental Protection for Exterior Wiring

The Pollak 64-101 is a high-performance, weather-resistant relay kit designed for 12VDC applications that demand maximum protection against the elements. While standard relays are restricted to dry interior locations, the 64-101 is engineered to thrive in exposed areas, making it the ideal choice for truck chassis, trailers, salt spreaders, and off-road equipment.

Sealed for Superior Reliability

This kit is built to survive road salt, heavy rain, and dust. The 64-101 includes:

• 40A Weather-Resistant Relay: A 5-pin Single Pole Double Throw (SPDT) relay featuring a sealed housing to protect internal contacts from corrosion.

• Sealed Connector Socket: The included socket features an integrated seal that locks out moisture and debris at the critical connection point.

• Color-Coded Pigtail Leads: High-quality pre-wired leads ensure a professional, secure installation with minimal effort.

Heavy-Duty Performance

Rated for 40 Amps, this relay is tough enough to power heavy-draw exterior accessories such as LED light bars, auxiliary backup lights, hydraulic pumps, and electric winches. By utilizing a 5-pin SPDT configuration, it provides both Normally Open (NO) and Normally Closed (NC) versatility for any custom electrical project.

Key Features & Benefits:

• Weather-Resistant Design: Engineered for exterior mounting and harsh environmental exposure.

• 5-Pin SPDT Versatility: Supports a wide variety of switching configurations for professional installs.

• 40 Amp Power Rating: Reliably manages high-current loads without overheating.

• Integrated Moisture Seal: The connector socket is designed to keep water away from the terminals.

• OEM Quality: Built by Pollak to meet the rigorous vibration and thermal standards of the heavy-duty trucking industry.

Technical Specifications:

• Part Number: 64-101 (Package No. 64-101P)

• Voltage: 12 VDC

• Current Rating: 40 Amps

• Reset Type: SPDT (Single Pole Double Throw)

• Protection: Weather Resistant / Moisture Sealed

• Kit Contents: (1) Sealed Relay, (1) Sealed Connector Socket with Pigtails
