SKU
07080
Manufactures SKU
TRUCK-LITE 07080

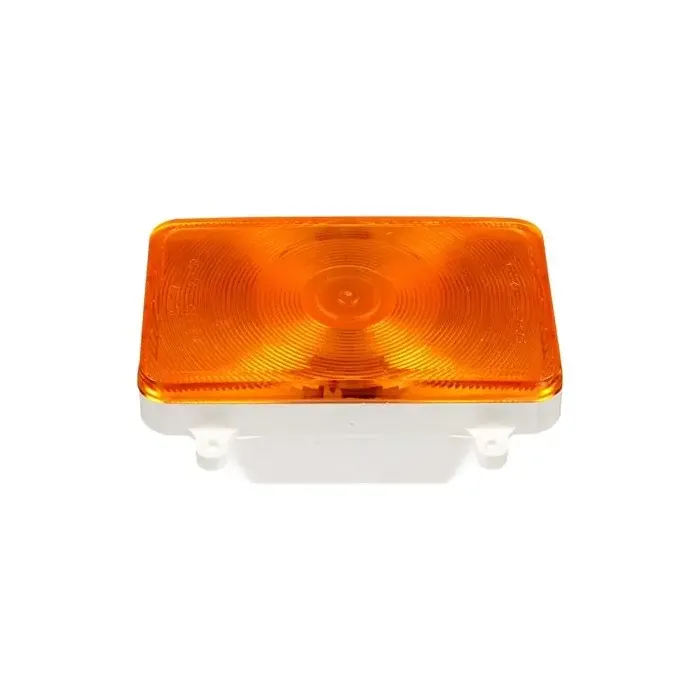

Incandescent - Yellow Rectangular - 1 Bulb - Front/Park/Turn - 4 Screw - 12V - Packard Connector 6288471
$29.89
EA
Incan. 1 Bulb - Rectangular - F/P/T - 4 Screw - 12V
Features & Benefits
Watertight lamp mates with Packard connector - Recess mounts using two screws at 30" centers and two screws at 42" centers - 12V lamps mate with PE Connector 62884715
Brand
TRUCK-LITE
Common Size
4 x 6
Current Major Amp
2.1
Current Minor Amp
0.48
Housing Material
Polycarbonate
KIT
No
Lamp Connection
Packard Connector 6288471
Lens Color
Yellow
Lens Height
4.75
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lens Width
6.46
Lighting Technology
Incandescent
Mount Type
4 Screw
Mount/Trim Color
Yellow
Mount/Trim Material
Polycarbonate
Mounting Connector Diameter
0.218
Number of Diodes/Bulbs
1
Number of Wires
3
Product Type
Front/Park/Turn
Sealed/Bulb Replaceable
Sealed
Voltage
12
Wire Gauge
18
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
I6 | P | P2
UPC
0735111009511
UNSPSC
25172900
VMRS
034-003-057
Warranty
1-Year
Shipping Weight (lbs)
0.800000
Total Height
5.22
Total Width
6.46
