SKU
07081
Manufactures SKU
TRUCK-LITE 07081
Bus - Incandescent - Red - Rectangular - 1 Bulb - Stop/Turn/Tail - 4 Screw - Blade Terminal - Stripped end - 12V
$29.13
EA
Bus - Incan. - Red - Rectangular - 1 Bulb - S/T/T - 4 Screw - Blade - Stripped - 12V
Features & Benefits

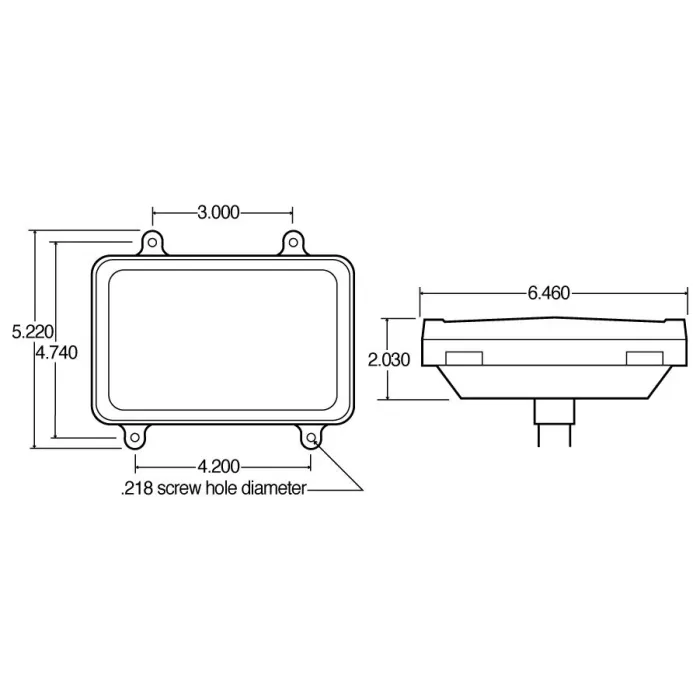

Recess mounts using two screws at 30" centers and two screws at 42" centers - Watertight lamp mates with Packard connector
Brand
TRUCK-LITE
Common Size
4 x 6
Current Major Amp
2.1
Current Minor Amp
0.48
KIT
No
Lamp Connection
Blade Terminal
Lens Color
Red
Lens Height
6.46
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lens Width
6.46
Lighting Technology
Incandescent
Mount Type
4 Screw
Mounting Connector Diameter
0.218
Number of Diodes/Bulbs
1
Number of Wires
2
Product Type
Stop/Turn/Tail
Sealed/Bulb Replaceable
Sealed
Voltage
12
Wire Gauge
18
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
I6 | P | S2 | T2
UPC
0735111009528
UNSPSC
25172900
VMRS
034-002-000
Warranty
1-Year
Shipping Weight (lbs)
1.000000
Total Height
5.22
Total Width
6.46
