Ensure maximum visibility and heavy-duty reliability for your 24-volt fleet with the Truck-Lite 07092 Red Rectangular Incandescent Stop/Turn/Tail Light. Specially engineered for 24V commercial buses, transit coaches, and specialized fleet vehicles, this multi-function lamp integrates stop, turn, and rear tail signaling into a classic 4"x6" class rectangular footprint. Built with a high-impact, weather-sealed polycarbonate lens and a robust 4-screw recess mount, it features a standardized blade terminal connection to deliver a seamless drop-in replacement for heavy-duty transit networks.
Operating heavy-duty 24V transit systems requires electrical components engineered specifically to handle higher-voltage commercial architectures. The Truck-Lite 07092 (Common Root 7092) is a field-proven, heavy-duty incandescent rear signaling solution trusted by fleet managers for commercial bus and coach maintenance.
This 24V sealed unit features a premium, non-fading red polycarbonate lens heat-sealed directly to its housing, forming an airtight barrier against moisture, highway spray, and road dust. Its internal high-output, dual-filament incandescent bulb delivers instant, highly recognizable signaling across all three critical rear safety functions: positive braking indicators, crisp turn signals, and steady running tail lighting.

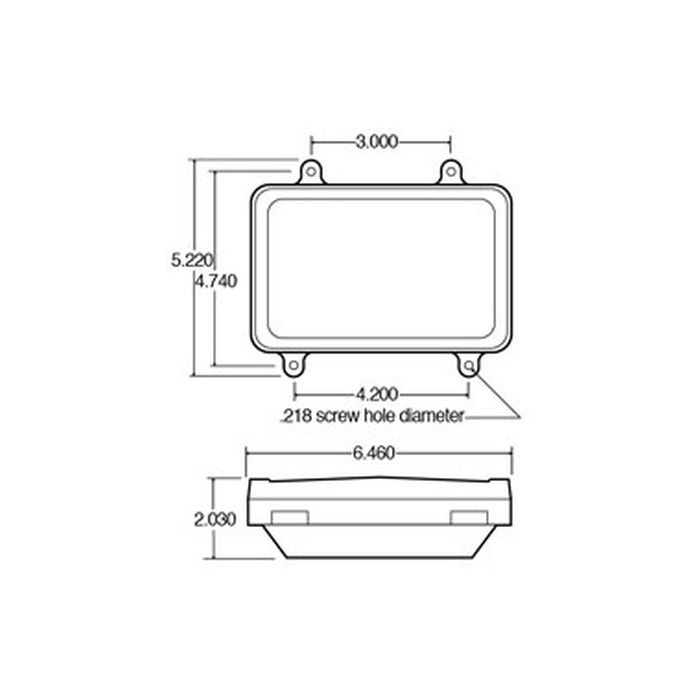

Designed for precise mechanical and electrical compatibility, the lamp connection features integrated blade terminals that align cleanly with standard commercial pigtail wire harnesses. The flush recess-mount installation utilizes a rock-solid 4-screw configuration, with mounting holes spaced at 3.0" and 4.2" centers, ensuring the lamp remains completely isolated from the heavy chassis vibrations common in transit buses and commercial coaches.
Engineered for 24V Systems: Built specifically to match the electrical demands of 24-volt commercial buses, foreign transit coaches, and military/industrial fleets.
3-in-1 Rear Safety Signaling: Consolidates Stop, Turn, and Tail (S/T/T) functions into a single heavy-duty, 4"x6" class rectangular housing.
Watertight Sealed Construction: High-impact polycarbonate lens and housing assembly completely shields internal filaments from moisture, dirt, and corrosion.
Standard Blade Terminal Interface: Outfitted with heavy-duty blade terminals for a secure, low-resistance connection to existing fleet wire harnesses.
Vibration-Dampening 4-Screw Mount: Recess mounts cleanly into vehicle body panels using stable hole spacing (3.0" and 4.2" centers) to prevent loosening on the highway.
FMVSS 108 Compliant: Fully meets or exceeds all applicable DOT, SAE, and CMVSS heavy-duty lighting regulations for legal on-road use.
