SKU
07396
Manufactures SKU
TRUCK-LITE 07396

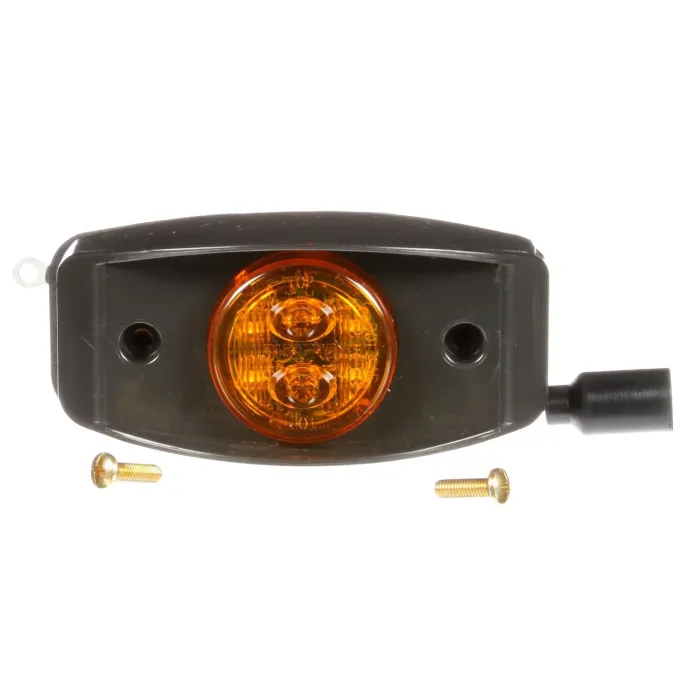

30 Series - LED - Yellow Round - 1 Diode - Marker Clearance Light - PC - Black Polycarbonate Bracket Mount - Socket Assembly - Female Military Boot/Ring Terminal - 12-24V - Kit
$51.25
EA
30 Series - LED - Yellow Round - 1 Diode - M/C Light - PC - Black Bracket - 12-24V - Kit
Features & Benefits
Complies with FMVSS 108 requirements - Brackets utilize standard military color scheme - Kits include a deflector mount with an inner bracket that allows cam-on of the lamp for quick installation - Manufactured out of ABS material - OmniVolt Technology (12 or 24V systems will run without adjustment) - LED life surpasses the 2k hours of incandescent bulbs by nearly 50x - Lens and housing assemblies constructed of impact-resistant polycarbonate - All electronics fully sealed in epoxy - making lamps less susceptible to shock and vibration - Faster start-up times and low current draw
Brand
TRUCK-LITE
Common Size
2
Current Major Amp
0.14
Current Minor Amp
0.06
Housing Material
Polycarbonate
KIT
Yes
Lamp Connection
Fit 'N Forget M/C
Lens Color
Yellow
Lens Height
2
Lens Material
Polycarbonate
Lens Shape
Round
Lens Width
2
Lighting Technology
LED
Mount Type
Bracket Mount Kit
Mount/Trim Color
Black
Mount/Trim Material
Polycarbonate
Mounting Connector Diameter
0.265
Number of Diodes/Bulbs
6
Number of Wires
2
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
30 Series
Voltage
12 | 24
Wire Gauge
16
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
Standards Met
P2 | PC
UPC
0735111170921
UNSPSC
25172900
VMRS
034-004-021
Warranty
1-Year
Shipping Weight (lbs)
0.500000
Total Height
2.46
Total Width
5.15
