SKU
10086Y
Manufactures SKU
TRUCK-LITE 10086Y

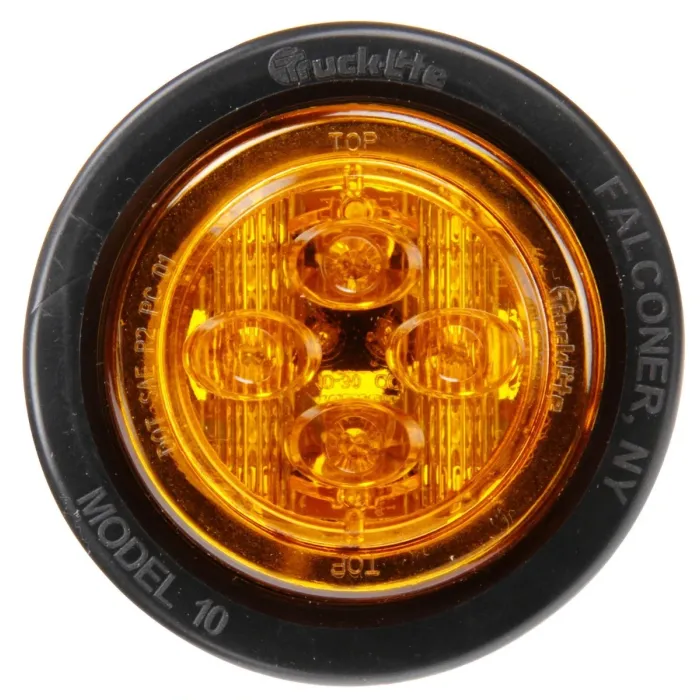

10 Series - Low Profile - LED - Yellow Round - 8 Diode - Marker Clearance Light - PC - Black PVC Grommet Mount - PL-10 - .180 Bullet Terminal/Ring Terminal - 12V - Kit
$23.87
EA
10 Series - LED - Yellow Round - 8 Diode - Low Profile - M/C Light - PC - Black Grommet - 12V - Kit
Features & Benefits
- Less current draw - resulting in increased battery and alternator life while allowing more power for other vehicle requirements - Most advanced and cost effect 2-1/2in clearance and marker lamp - SAE PC-rated for combination clearance/marker applications
Brand
TRUCK-LITE
Common Size
2.5
Current Major Amp
0.1
Housing Material
Polycarbonate
KIT
Yes
Lamp Connection
PL-10
Lens Color
Yellow
Lens Height
2.5
Lens Material
Polycarbonate
Lens Shape
Round
Lens Width
2.5
Lighting Technology
LED
Mount Type
Grommet Kit
Mount/Trim Color
Black
Mount/Trim Material
PVC
Number of Diodes/Bulbs
8
Number of Wires
2
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
10 Series
Voltage
12
Wire Gauge
16
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
Standards Met
P2 | PC
UPC
0735111061281
UNSPSC
25172900
VMRS
034-004-253
Warranty
3-Year
Shipping Weight (lbs)
0.400000
Total Height
2.54
Total Width
2.54
