Sonically Sealed Integrity: The polycarbonate lens and housing are sonically welded into a single hermetic unit to completely shut out external moisture, rain, and corrosive road grime.
-
Heavy-Duty 24V Fleet Design: Engineered specifically for 24-volt electrical systems common in military, international, and specialized heavy vocational equipment.
-
Extended Bulb Service Life: High-grade single-filament bulb delivers an exceptional 15,000-hour commercial design life to ensure maximum on-road reliability.
-
High-Impact Polycarbonate Construction: Rugged red lens material resists shattering, cracking, and damage from automatic wash bays or harsh road grit.
-
Industry-Standard PL-10 Port: Equipped with a standard female PL-10 receptacle on the back for rapid, plug-and-play installation or wire harness retrofitting.
-
Flexible Geometric Positioning: Fully satisfies strict PC lighting parameters when positioned at a 45-degree orientation in specialized Truck-Lite mount brackets or boxes (such as #10708, #10720, #00803, or #00804).
-
Direct Interchange Support: Functions as an exact direct-replacement upgrade for legacy Signal-Stat 1010 and 1011 series 24-volt red lighting parts.
Last One in Stock!

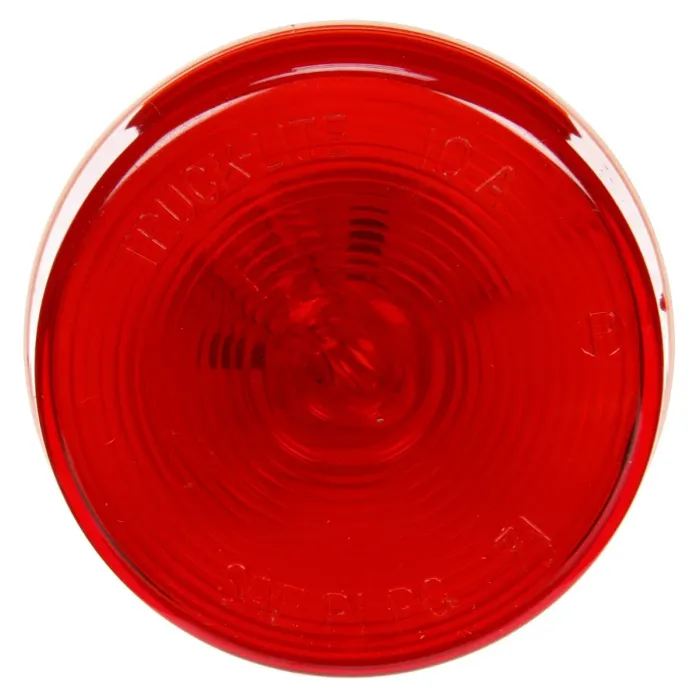

Truck-Lite 10204R 10 Series Red Round Incandescent Marker Clearance Light – 2.5 in., 1 Bulb, PL-10 Connection (24V)
Ensure your heavy-duty commercial vehicles remain fully compliant, highly visible, and safe on the road with the Truck-Lite 10204R 10 Series Incandescent Red Round Marker Clearance Light. As a critical 24-volt electrical component within the industry-standard Model 10 product family, this 2.5-inch sealed lamp features a heavy-duty single-bulb configuration engineered to deliver a bright, crisp red light. Built specifically to satisfy the strict requirements of 24V commercial fleets, international logistics trailers, military transport, and heavy vocational equipment, this clearance light blends classic incandescent performance with Truck-Lite’s legendary environmental engineering.
The Truck-Lite 10204R is manufactured using a premium, high-impact polycarbonate lens and housing assembly that are permanently sonically sealed together. This robust, single-unit construction eliminates the need for separate gaskets or loose screws, locking out destructive moisture, dust, road salt, and dirt before they can threaten internal components or cause premature shorts. The internal 24V heavy-duty single filament is built for long-haul durability, carrying a 15,000-hour-rated operational lifespan that minimizes maintenance cycles and fleet vehicle downtime. For a quick electrical swap or retrofit, the back of the lamp features a standard industry-style PL-10 plug receptacle that hooks up seamlessly to your existing 2-wire harness. Whether deployed as a rear tracking light, side marker, or corner clearance unit, this 24V red light delivers a tight, vibration-damping fitment when paired with standard 2.5-inch rubber flush-mount grommets or specialized mounting brackets.
