Built-In Reflectorized Optics: Features an integrated reflectorized lens to provide maximum off-angle visibility and vehicle reflectivity, satisfying DOT conspicuity mandates without separate reflectors.
-
Sonically Sealed Integrity: High-impact polycarbonate lens and housing are sonically welded into a single hermetic unit to permanently lock out moisture and road grime.
-
Extended Bulb Service Life: High-grade 12V single-filament incandescent bulb provides an exceptional 15,000-hour operational design life.
-
Industry-Standard PL-10 Interface: Receptacle on the back accommodates standard right-angle or straight female PL-10 plug pigtails for rapid drop-in installation or retrofitting.
-
Flexible Geometric Compliance: Fully satisfies strict DOT/SAE P2 and A ratings. It also meets PC lighting parameters when set at a 45-degree orientation in specialized Truck-Lite mount devices (such as #10708, #10720, #00803, or #00804).
-
Direct Interchange Support: Functions as an exact direct-replacement upgrade for legacy Signal-Stat 1010 and 1011 series lighting parts, as well as Grote 45832.

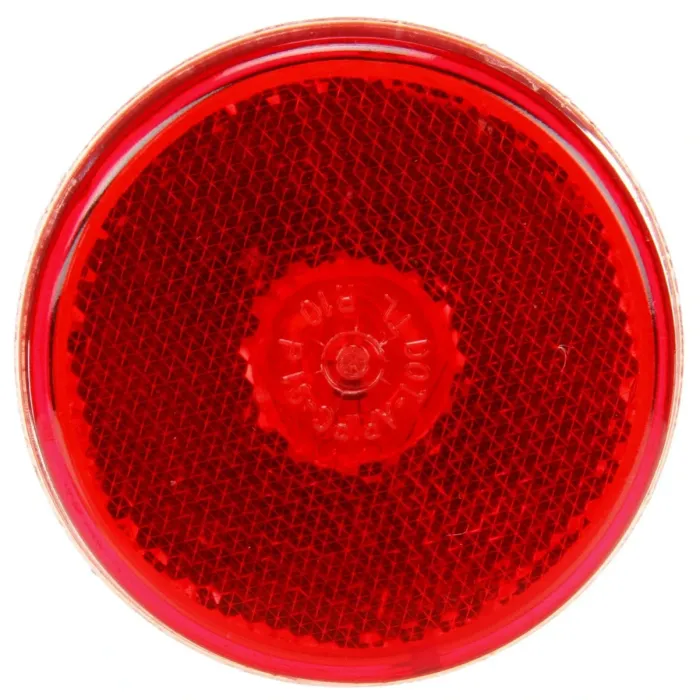

Truck-Lite 10205R 10 Series Red Round Incandescent Reflectorized Marker Clearance Light – 2.5 in., 1 Bulb, PL-10 Port (12V)
Upgrade your commercial vehicle's safety profile and remain fully DOT-compliant with the Truck-Lite 10205R 10 Series Incandescent Red Round Reflectorized Marker Clearance Light. Standing out as a highly versatile solution within the industry-standard Model 10 product line, this 2.5-inch sealed lamp features an integrated reflectorized lens surface. This dual-benefit design eliminates the need for an additional stick-on reflector on your equipment, saving valuable installation time and cleaning up the exterior profile of your vehicle. Engineered specifically for heavy-duty commercial trailers, flatbeds, box trucks, buses, and vocational fleets, this lamp seamlessly combines classic incandescent reliability with elite vehicle conspicuity.
The Truck-Lite 10205R is manufactured using high-impact polycarbonate for both the lens and housing, which are permanently sonically sealed together. This robust, single-unit construction acts as an unyielding barrier against moisture intrusion, road salt, dirt, and high-pressure wash bay sprays, completely preventing the premature failure common in multi-piece assemblies. Inside, the 12-volt single-filament bulb is meticulously engineered for long-haul duty, offering a remarkable 15,000-hour-rated service life to minimize fleet maintenance downtime. Powering the unit is simple thanks to the industry-standard PL-10 plug port connection molded right into the back. Designed for adaptable vehicle layout placement, this 12V red unit satisfies strict safety guidelines and delivers a snug, vibration-damping fitment when paired with standard 2.5-inch rubber flush-mount grommets or surface-mount flanges.
