Integrated Gray Polycarbonate Flange: Features a built-in gray polycarbonate flange mount that offers a clean, rigid, surface-mount profile without requiring extra brackets or open-back rubber grommets.
-
Ultra-Efficient 2-Diode LED Design: Delivers crisp, bright red lighting while consuming significantly less power than traditional incandescent lights, lowering overall battery and alternator drain.
-
Fit 'N Forget M/C Connection: Provides a premium, hardwired-feel connection that forms an airtight seal at the plug site, locking out rain, moisture, road spray, and ice-melting chemicals.
-
100% Epoxy-Sealed Circuitry: The heavy-duty circuit board and LEDs are fully embedded in solid protective epoxy, providing complete defense against corrosion, severe thermal shock, and constant road vibration.
-
Impact-Resistant Polycarbonate Assembly: Engineered from high-strength polycarbonate for both the lens and the flange housing, protecting the unit against impact from flying road debris and harsh weather.
-
Low-Profile, Streamlined Depth: With a compact 1.4-inch depth profile, this light hugs the trailer body to reduce the risk of being snagged or damaged during tight loading dock maneuvers.
-
DOT, SAE & FMVSS 108 Compliant: P2 and PC rated for compliance at a 90-degree angle, ensuring your truck or trailer completely fulfills Department of Transportation requirements.
-
Truck-Lite Lifetime Warranty: Peace of mind comes standard with a manufacturer lifetime warranty built to cover millions of highway miles.

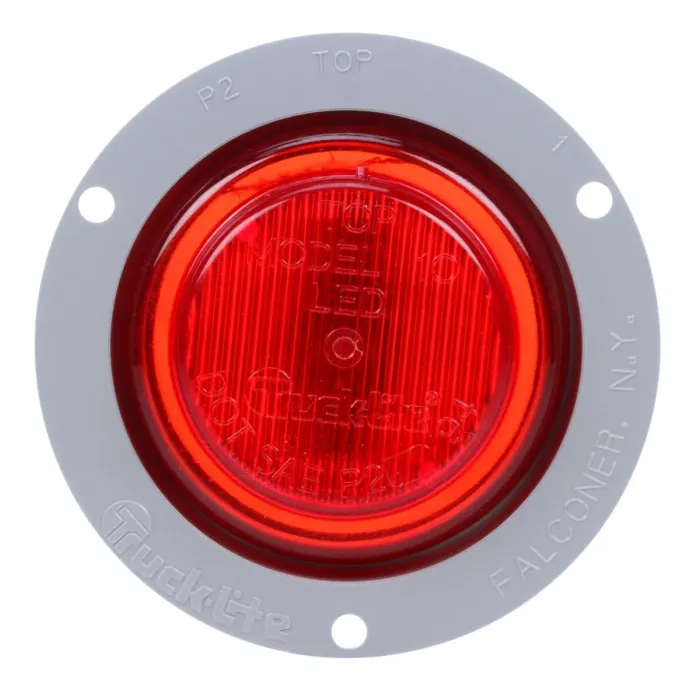

Truck-Lite 10251R 10 Series - Red Round 2 Diode LED Marker Clearance Light, P2, Gray Polycarbonate Flange Mount, Fit 'N Forget M/C, 12V
Upgrade Your Vehicle Safety with the Flange-Mounted Truck-Lite 10251R 10 Series 2.5" Red Round LED Marker Clearance Light
When it comes to heavy-duty trailer and commercial truck illumination, surface mounting needs to be secure, permanent, and impervious to the elements. The Truck-Lite 10251R (10 Series) is a top-tier, 2.5-inch round red LED marker and clearance light integrated into a permanent gray polycarbonate flange mount. This specialized flange design allows for direct, flush surface mounting to your vehicle or trailer body, eliminating the need for separate rubber grommets.
Built around a high-efficiency 2-diode LED configuration, this red lamp draws an incredibly low current (only 0.03 Amp major), reducing strain on your alternator and leaving more power available for other critical electrical systems. Equipped with Truck-Lite’s legendary Fit 'N Forget M/C system, the light features completely encapsulated internal circuitry that eliminates terminal corrosion and filament wear. Whether managing a vocational fleet or an over-the-road semi-trailer, the 10251R delivers maximum uptime and zero-maintenance operation.
Grote: 47122 (Grommet equivalent), 47012
Peterson Lighting: M172R
Truck-Lite: TL10251R, TRU10251R, 10251R3, 10250R (Grommet version)
