Advanced 8-Diode LED Array: Packed with 8 high-output diodes to provide intense, uniform amber illumination that far exceeds standard 2-diode or 3-diode configurations.
-
Dual-Purpose PC Compliance Rating: Meets strict PC requirements for 180-degree visibility. When mounted properly, it satisfies both clearance and marker light regulations simultaneously, saving you money and installation time.
-
Optically Optimized High-Profile Lens: Features an extended, high-profile dome shape designed to cast light outwards and sideways, maximizing your fleet’s visibility in blind spots and low-light conditions.
-
Industry-Standard PL-10 Connection: Utilizes a standard right-angle PL-10 plug interface, making it a quick, seamless drop-in replacement for your existing trailer wiring harnesses.
-
100% Hermetically Sealed Construction: The high-impact polycarbonate lens and housing are welded together to form an airtight, moisture-proof seal that locks out rain, dust, road spray, and corrosive ice-melting chemicals.
-
Energy-Efficient Low Current Draw: Pulls a tiny 0.06 Amp major current at 12V, significantly reducing strain on your truck’s electrical grid and preserving battery life.
-
Flexible Grommet Mounting: Easily installs into a standard 2.5" open-back rubber grommet (sold separately), ensuring a secure, shock-absorbing flush mount on any flat trailer panel.
-
DOT, SAE & FMVSS 108 Certified: Fully compliant with all Department of Transportation safety standards for commercial motor vehicles.
-
Truck-Lite Lifetime Warranty: Backed by a manufacturer's premium lifetime warranty against diode failure and material defects.

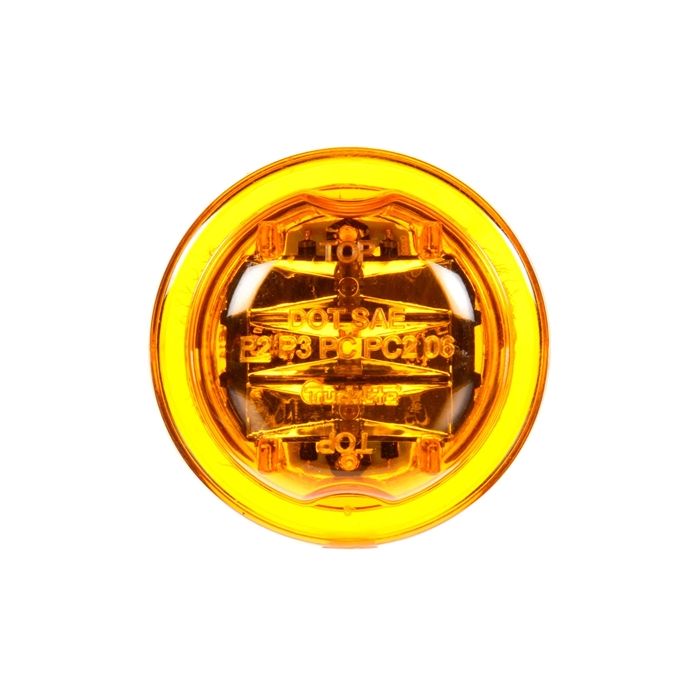

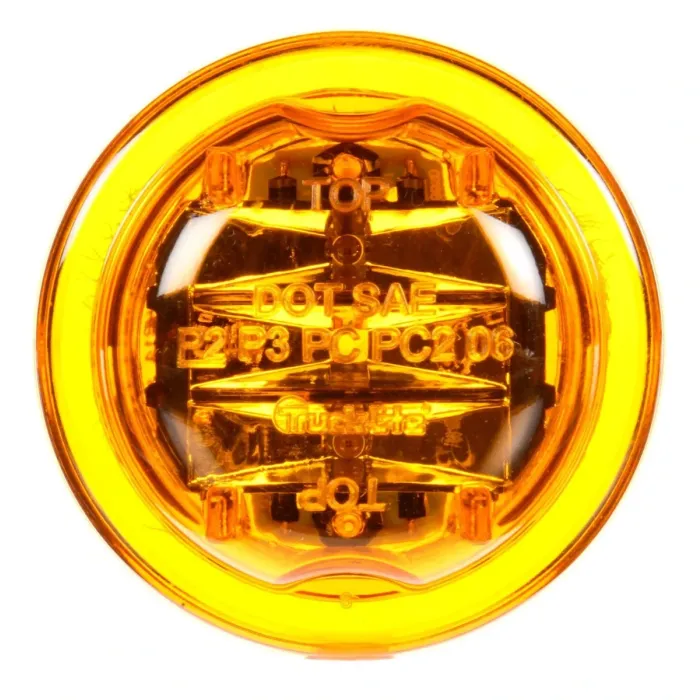

Truck-Lite 10 Series - High Profile Yellow Round 8 Diode LED Marker Clearance Light, PC, PL-10, 12V
Command Attention and Boost Road Safety with the Truck-Lite 10275Y 10 Series 2.5" Yellow Round High-Profile 8-Diode LED Marker Clearance Light
When it comes to outfitting commercial trucks, trailers, and heavy equipment, standard lighting doesn't always cut it in low-visibility environments. The Truck-Lite 10275Y (10 Series) is a heavy-duty, 2.5-inch round yellow (amber) LED marker and clearance light engineered with a specialized high-profile lens design. This high-profile geometry ensures maximum light dispersion across a wide angle, allowing your vehicle to be easily spotted by surrounding traffic from both the front and side angles.
Equipped with an advanced 8-diode LED array, this premium lamp delivers a brilliant, intense amber light output that commands attention on the highway while drawing a mere 0.06 Amps. Built for demanding commercial fleets, the 10275Y boasts a PC rating. This means it can function simultaneously as both a clearance light and a side marker light when mounted at a 45-degree angle, reducing the total number of fixtures needed on your trailer. With its fully sealed polycarbonate construction and industry-standard PL-10 plug connection, this 12V LED light is built to eliminate maintenance headaches and maximize vehicle uptime.
Grote: 47073, 47113
Peterson Lighting: 164A, M164A
Truck-Lite: TL10275Y, TRU10275Y, 10275Y3, 8413-10275Y
