Compact Low-Profile Depth Geometry: Engineered with a shallow depth of only 1.06 inches, allowing the light to stay tucked out of harm's way on over-the-road trailers and vocational vehicles.
-
Dual-Purpose PC Compliance Rating: Dual-certified for PC-rated combination clearance and marker applications, allowing a single corner-mounted light to fulfill multiple legal safety requirements.
-
Intense 8-Diode LED Configuration: Features 8 high-output diodes arranged symmetrically to deliver brilliant, instantaneous red warning signals that far outperform standard incandescent filaments.
-
Energy-Efficient, Low Current Draw: Consumes just 0.10 Amps major current at 12V, significantly freeing up vehicle electrical capacity for other demanding truck requirements.
-
Industry-Standard PL-10 Connector: Features a female right-angle PL-10 plug receptacle for seamless plug-and-play installation into standard aftermarket trailer harnesses.
-
100% Hermetically Sealed Build: The high-impact polycarbonate lens and body are molecularly welded together to lock out destructive rainwater, highway grit, and winter de-icing chemicals.
-
Simple Rubber Grommet Mounting: Easily installs into a standard open-back 2.5" rubber grommet (such as Truck-Lite 10704 or 10714, sold separately) for a shock-absorbing, flush-mount fit.
-
DOT & FMVSS 108 Certified: Fully compliant with all legal DOT, SAE, and CMVSS requirements for commercial motor vehicles.
-
3-Year Manufacturer Warranty: Backed by Truck-Lite’s trusted 3-year commercial warranty against performance failure.

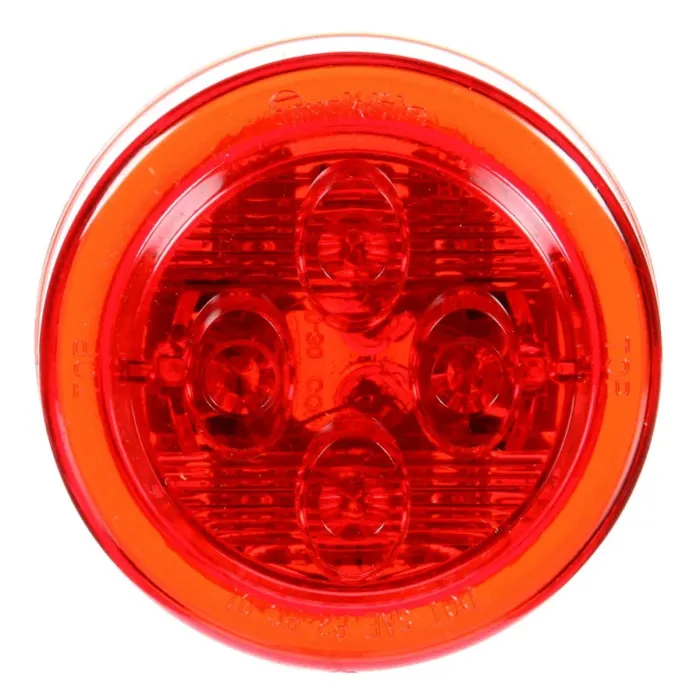

Truck-Lite 10 Series - Low Profile Red Round 8 Diode LED Marker Clearance Light, PC, PL-10, 12V
Slim Profile, Maximum Protection: Truck-Lite 10286R 10 Series 2.5" Red Round Low-Profile 8-Diode LED Combination Marker Clearance Light
When clear visibility is mandatory but mounting space is tight, standard clearance lamps pose a vulnerability to limbs, limbs, and tight loading structures. The Truck-Lite 10286R (10 Series) provides the ultimate heavy-duty solution—offering an exceptionally advanced 2.5-inch round red LED marker and clearance lamp engineered with a specialized low-profile housing design. Measuring just 1.06 inches in depth, this slim-line lamp hugs your trailer paneling tightly, minimizing the risk of expensive impact damage while keeping your fleet fully safe and visible.
The 10286R utilizes a premium 8-diode LED array hidden behind a solid polycarbonate lens to project crisp, intense red lighting. Because this light is engineered with an elite SAE PC rating, it provides a full 180 degrees of legal visibility. When installed on a 45-degree corner, it satisfies both clearance light and side marker regulations simultaneously, saving you installation labor and reducing total fixture costs. Powered by a standard 12V system, this hermetically sealed unit cuts electrical current draw to a mere 0.10 Amps, creating immediate savings on your vehicle's alternator and battery life.
Grote: 47072, 47112 (Standard profile equivalents)
Peterson Lighting: M164R, 164R (High profile alternative)
Truck-Lite: TL10286R, TRU10286R, 10286R3, 8413-10286R, LIT10286R
