Complete Professional Installation Kit: Eliminates the guesswork by bundling the low-profile 10 Series LED lamp, a rugged black polycarbonate flush-mount flange, a right-angle PL-10 plug, and pre-wired .180 bullet/ring terminals.
-
Shallow Low-Profile Depth Geometry: Features a compact 1.06-inch depth that keeps the unit flat against the trailer wall, minimizing the risk of the light being sheared off during tight maneuvers.
-
Dual-Purpose PC Compliance Rating: Dual-certified for PC-rated combination clearance and marker applications, allowing a single corner-mounted light to fulfill multiple legal safety requirements.
-
Intense 8-Diode LED Configuration: Engineered with 8 premium high-output diodes arranged symmetrically to deliver brilliant, instantaneous red warning signals that far outperform traditional incandescent filaments.
-
Energy-Efficient, Low Current Draw: Consumes an incredibly low major current at 12V, reducing strain on your truck’s alternator and freeing up electrical capacity for other heavy-duty electronic systems.
-
Impact-Resistant Polycarbonate Assembly: High-strength polycarbonate is used for the red lens, housing, and flush-mount flange to survive flying highway gravel, structural vibrations, and severe weather.
-
100% Hermetically Sealed Build: The lens and housing are molecularly welded together to form a permanent defense system that completely locks out rain, road spray, grit, and corrosive winter road salts.
-
DOT, SAE & FMVSS 108 Certified: Fully compliant with all legal DOT, SAE, and CMVSS requirements for commercial motor vehicles.

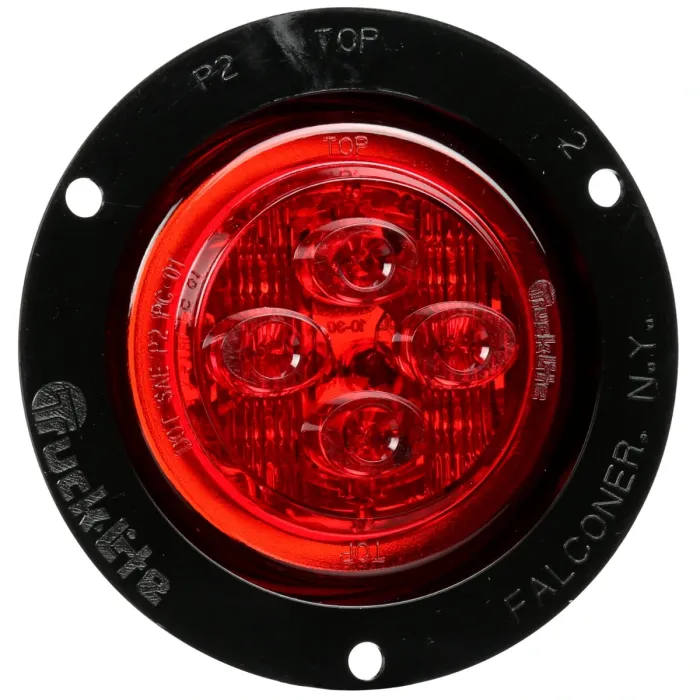

Truck-Lite 10288R 10 Series 2.5" Red Round Low-Profile 8-Diode LED Marker Clearance Light Kit
Complete All-in-One Fleet Solution: Truck-Lite 10288R 10 Series 2.5" Red Round Low-Profile 8-Diode LED Marker Clearance Light Kit
Simplify your vehicle maintenance and secure your trailer's safety parameters with a comprehensive, ready-to-install lighting package. The Truck-Lite 10288R (10 Series) is a heavy-duty 2.5-inch round red LED marker and clearance light offered as a complete all-in-one installation kit. This premium kit includes the ultra-slim, low-profile LED lamp, a secure black polycarbonate flush-mount flange, an industry-standard PL-10 right-angle plug harness, and heavy-duty .180 bullet and ring terminals—giving you everything needed for a fast, reliable, hardwired-style surface mount upgrade.
Measuring a shallow 1.06 inches in depth, the low-profile housing configuration keeps the light tucked flat against your vehicle paneling, dramatically reducing the risk of expensive impact damage from low-hanging branches or tight loading docks. Engineered with a premium 8-diode LED array beneath a high-strength polycarbonate lens, this lamp provides intense, uniform red lighting. Thanks to its elite SAE PC compliance rating, it delivers a full 180 degrees of legal visibility. When properly positioned on a 45-degree trailer corner, a single light simultaneously satisfies both clearance and side marker regulations, optimizing your fleet design and slashing total fixture costs.
Grote: 47072, 47112 (Standard profile equivalents)
Peterson Lighting: M164R-K, 164R-K (High profile kit alternatives)
Truck-Lite: TL10288R, TRU10288R, 10286R (Lamp only equivalent), 8413-10288R
