Integrated Black Polycarbonate Flush Flange: Features a built-in black polycarbonate flange mount that offers a clean, rigid, surface-mount profile without requiring extra brackets or open-back rubber grommets.
-
Shallow Low-Profile Depth Geometry: Features a compact depth of only 1.06 inches, allowing the light to stay tucked flat and out of harm's way on commercial over-the-road trailers, delivery box trucks, and vocational vehicles.
-
Dual-Purpose PC Compliance Rating: Dual-certified for PC-rated combination clearance and marker applications. A single corner-mounted light satisfies multiple legal safety requirements, optimizing your trailer design.
-
Intense 8-Diode LED Configuration: Engineered with 8 premium high-output diodes arranged symmetrically to deliver brilliant, instantaneous yellow/amber illumination that far outperforms traditional incandescent filaments.
-
Energy-Efficient, Low Current Draw: Consumes just 0.06 Amps major current at 12V, freeing up critical vehicle electrical capacity for other electronic systems.
-
Industry-Standard PL-10 Connector: Built with a female right-angle PL-10 plug receptacle for a fast, hassle-free plug-and-play upgrade into standard aftermarket trailer harnesses.
-
100% Hermetically Sealed Build: The high-impact polycarbonate lens and body are molecularly welded together to form a permanent defense system that completely locks out rain, road spray, grit, and corrosive winter road salts.
-
DOT & FMVSS 108 Certified: Fully compliant with all legal DOT, SAE, and CMVSS requirements for commercial motor vehicles.
-
3-Year Manufacturer Warranty: Backed by Truck-Lite’s trusted 3-year commercial warranty against performance and diode failure.

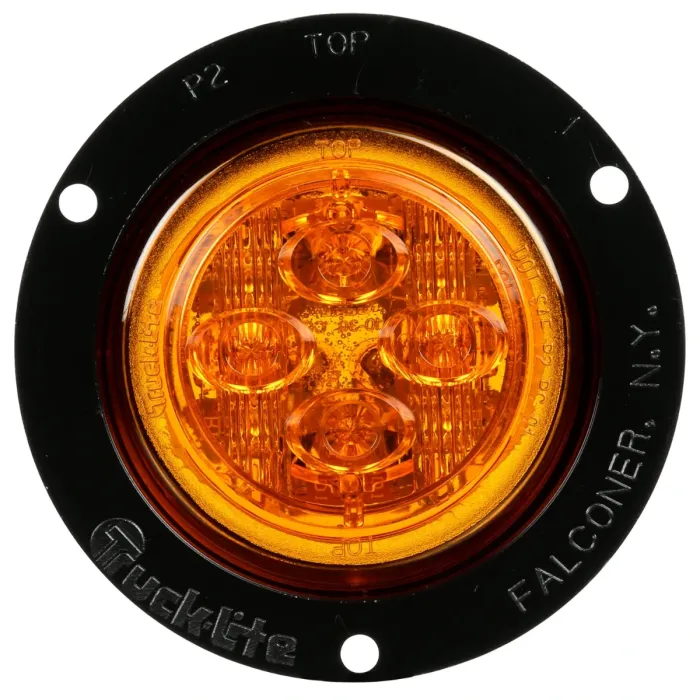

Truck-Lite 10288Y 10 Series 2.5" Yellow Round Low-Profile 8-Diode LED Flush Mount Marker Clearance Light
Slim Profile, Permanent Protection: Truck-Lite 10288Y 10 Series 2.5" Yellow Round Low-Profile 8-Diode LED Flush Mount Marker Clearance Light
When clear side visibility is critical but structural clearance is tight, standard protruding lights pose a constant vulnerability to side-swipes, limbs, and narrow loading docks. The Truck-Lite 10288Y (10 Series) offers the ultimate heavy-duty solution—engineered as a high-performance 2.5-inch round yellow (amber) LED marker and clearance lamp integrated into a rigid, permanent black polycarbonate flush-mount flange. Measuring a shallow 1.06 inches in depth, this ultra-slim lamp assembly hugs your vehicle paneling tightly, minimizing the risk of expensive impact damage while keeping your commercial assets completely safe and visible.
The 10288Y utilizes a premium 8-diode LED array beneath a high-strength amber polycarbonate lens to project crisp, intense warning signals. Because this light is engineered with an elite SAE PC compliance rating, it provides a full 180 degrees of legal visibility. When installed on a 45-degree trailer corner, a single light satisfies both front/side clearance light and side marker regulations simultaneously, saving you installation labor and reducing total fixture costs. Operating on standard 12V systems, this hermetically sealed unit cuts electrical current draw to a tiny 0.06 Amps, creating immediate relief for your vehicle's alternator and battery life.
Grote: 47073, 47113 (Standard profile equivalents)
Peterson Lighting: M164A, 164A (High profile alternative)
Truck-Lite: TL10288Y, TRU10288Y, 10286Y (Grommet mount version equivalent), 8413-10288Y
