Integrated Gray Polycarbonate Flange: The molded surface-mount gray flange allows for permanent, secure, screw-down installation to the vehicle exterior without needing additional mounting brackets or push-in rubber grommets.
-
Dual-Purpose PC Compliance Rating: Meets strict P2, P3, and PC regulations for a full 180 degrees of legal visibility. When mounted on corners, a single fixture acts as a combination clearance and side marker lamp, optimizing vehicle design and reducing parts costs.
-
Extended High-Profile Lens Architecture: Features a taller dome shape crafted to cast deep red light outward and sideways, significantly enhancing safety in low-light environments and around aerodynamic fairings.
-
High-Output 8-Diode LED Array: Utilizes 8 premium LEDs to form an intense, uniform illumination pattern that far outperforms traditional incandescent filaments.
-
Fit 'N Forget M/C Connection System: Features an advanced, airtight plug interface that creates a moisture-proof, corrosion-proof seal at the wiring connection point to eliminate electrical failures.
-
100% Epoxy-Sealed Circuitry: Internal electronics are completely embedded in solid protective epoxy, providing military-grade defense against intense road shocks, structural vibrations, and moisture intrusion.
-
Impact-Resistant Polycarbonate Assembly: High-strength, UV-stabilized polycarbonate is used for both the red lens and the flange housing to survive flying highway gravel, tight loading maneuvers, and severe weather.
-
DOT, SAE & FMVSS 108 Certified: Fully certified to fulfill all legal Department of Transportation and Canadian Motor Vehicle Safety Standards (CMVSS) requirements for commercial motor vehicles.

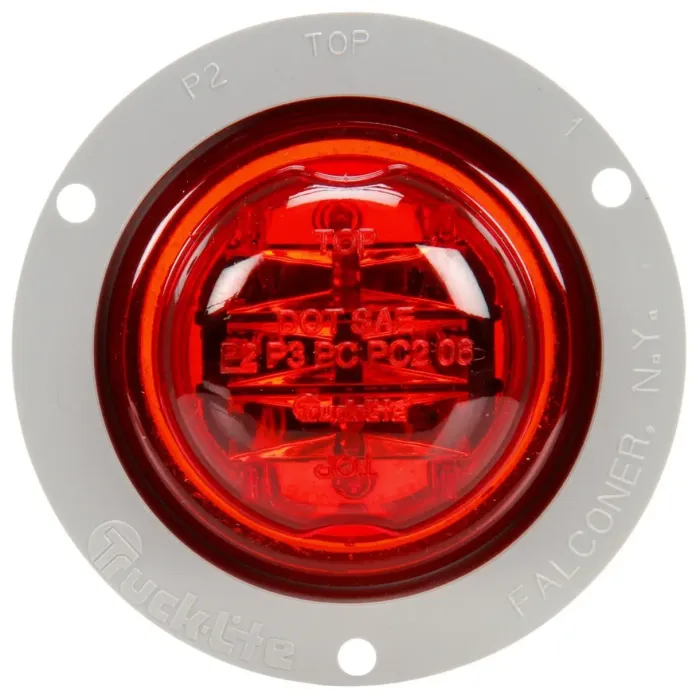

Truck-Lite 10379R 10 Series 2.5" Red Round High-Profile 8-Diode LED Flange Mount Marker Clearance Light
Permanent Surface Protection and Wide-Angle Visibility: Truck-Lite 10379R 10 Series 2.5" Red Round High-Profile 8-Diode LED Flange Mount Marker Clearance Light
When outfitting heavy-duty commercial vehicles, permanent surface mounting requires extreme structural security alongside uncompromised side-angle visibility. The Truck-Lite 10379R (10 Series) stands out as the industry’s most advanced and cost-effective 2.5-inch round red LED marker and clearance lamp. It comes integrated seamlessly into a rugged, permanent gray polycarbonate flange mount. This built-in flange allows for clean, direct, screw-down surface installation to your vehicle panels, fenders, sleeper cabs, or trailer header rails—completely eliminating the need for separate open-back rubber grommets.
The 10379R features an optically engineered high-profile lens design packed with a premium 8-diode LED array. This extended dome geometry projects light outward at a precise 45-degree angle, making it an essential choice for casting high-intensity red illumination around vehicle fairings and body contours. Because of its elite SAE PC compliance rating, this versatile fixture functions simultaneously as both a side marker light and a clearance light when properly positioned at a trailer or cab corner. Outfitted with Truck-Lite's proprietary Fit 'N Forget M/C (Moisture/Corrosion-Proof) plug connection interface and 100% encapsulated electronics, this 12V combination lamp provides an airtight barrier engineered to completely stop the terminal rot that destroys standard commercial lights.
Grote: 47372, 47372GRO (PL-10 equivalents)
Peterson Lighting: M163FR, M197FR, PM-M163FR (PL-10 equivalents)
Truck-Lite: TL10379R, TRU10379R, TLD10379R, 10375R (Grommet mount version equivalent), 8413-10379R
