Integrated Gray Polycarbonate Flange: The molded surface-mount gray flange allows for secure, direct mounting to the trailer exterior without needing additional mounting brackets or push-in rubber grommets.
-
Compact Low-Profile Depth Geometry: Engineered with a shallow depth of only 1.06 inches, allowing the light to stay tucked flat and out of harm's way on over-the-road trailers and vocational vehicles.
-
Dual-Purpose PC Compliance Rating: Meets strict PC regulations for a full 180 degrees of legal visibility. When mounted on trailer corners, a single fixture acts as a combination clearance and side marker lamp, reducing total fixture counts.
-
High-Output 8-Diode LED Array: Utilizes 8 premium LEDs to form an intense, uniform illumination pattern that far outperforms traditional incandescent filaments.
-
Advanced Fit 'N Forget M/C Connection: Built with an airtight Fit 'N Forget plug interface that forms a moisture-proof, corrosion-proof barrier right at the wire terminal point to prevent terminal rot and premature field failure.
-
100% Epoxy-Sealed Circuitry: Internal electronics are completely embedded in solid protective epoxy, creating a barrier that resists intense road shocks, structural vibrations, and moisture corrosion.
-
Impact-Resistant Polycarbonate Assembly: High-strength polycarbonate is used for both the amber lens and the flange housing to survive flying highway gravel, tight loading maneuvers, and severe weather.
-
DOT, SAE & FMVSS 108 Certified: Fully certified to fulfill all legal Department of Transportation requirements for commercial vehicles.
-
3-Year Manufacturer Warranty: Backed by Truck-Lite’s trusted 3-year commercial warranty against performance and diode failure.

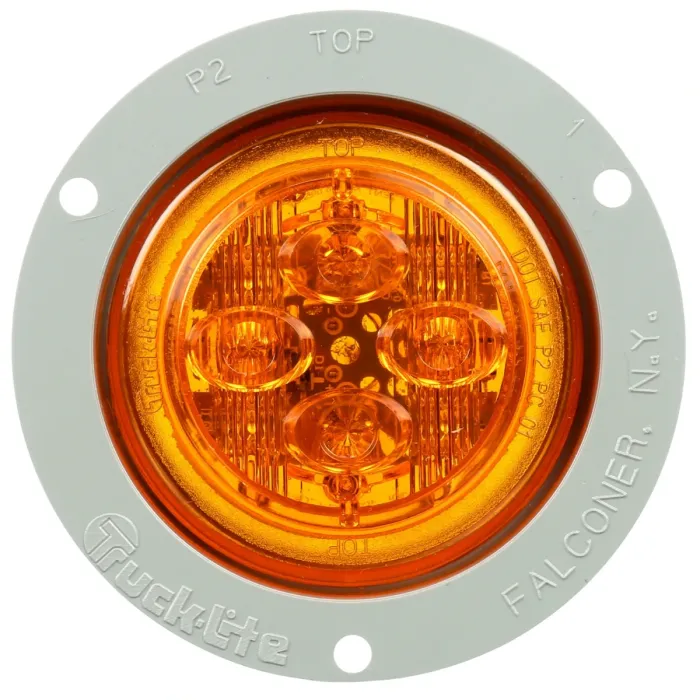

Truck-Lite 10389Y 10 Series 2.5" Yellow Round Low-Profile 8-Diode LED Flange Mount Marker Clearance Light
Permanent Surface Protection and Slim-Line Visibility: Truck-Lite 10389Y 10 Series 2.5" Yellow Round Low-Profile 8-Diode LED Flange Mount Marker Clearance Light
When outfitting commercial semi-trailers, box trucks, and heavy-duty equipment, surface mounting requires ultimate structural security alongside a tight, low-profile fit. The Truck-Lite 10389Y (10 Series) is a heavy-duty, 2.5-inch round yellow (amber) LED marker and clearance lamp integrated seamlessly into a permanent gray polycarbonate flange mount. This built-in flange allows for clean, direct, screw-down surface installation to your vehicle paneling, completely removing the need for separate open-back rubber grommets.
The 10389Y stands out with its engineered low-profile housing configuration. Measuring a shallow 1.06 inches in depth, this slim-line lamp hugs your trailer paneling tightly, minimizing the risk of expensive impact damage from low-hanging branches, tight loading docks, or side-swipes. Packed with an advanced 8-diode LED array, it projects intense, uniform amber lighting. Because of its elite SAE PC compliance rating, this versatile lamp functions simultaneously as both a side marker light and a clearance light when properly positioned at a 45-degree trailer corner angle. Outfitted with Truck-Lite's signature Fit 'N Forget M/C (Moisture/Corrosion-Proof) connection system and 100% encapsulated electronics, this 12V combination lamp provides an exceptionally low-maintenance solution designed to completely stop terminal rot and environmental moisture failure.
Grote: 47373, 47373GRO, 47423 (High-profile PL-10 equivalents)
Peterson Lighting: M163FA, M197FA, PM-M163FA (High-profile PL-10 equivalents)
Truck-Lite: TL10389Y, TRU10389Y, 10385Y (Grommet mount version equivalent), 10289Y (PL-10 low-profile version equivalent), 10389R (Red equivalent version), 8413-10389Y
