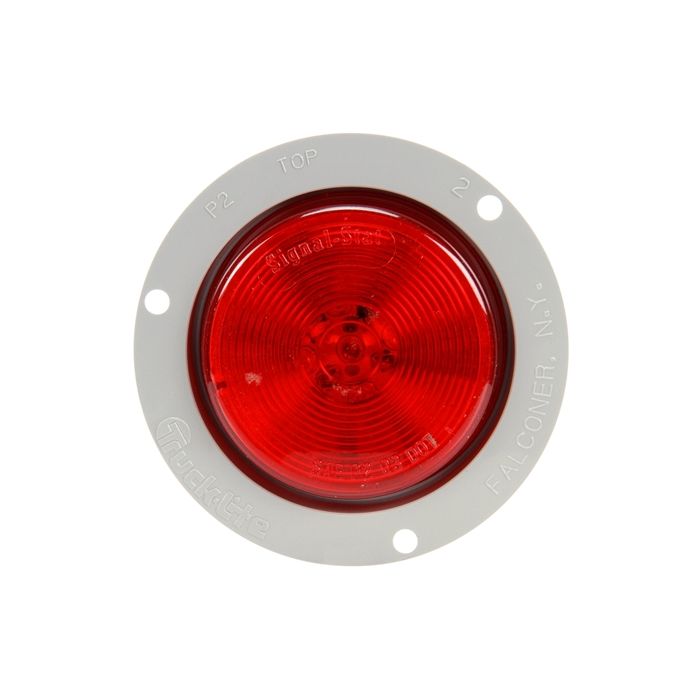

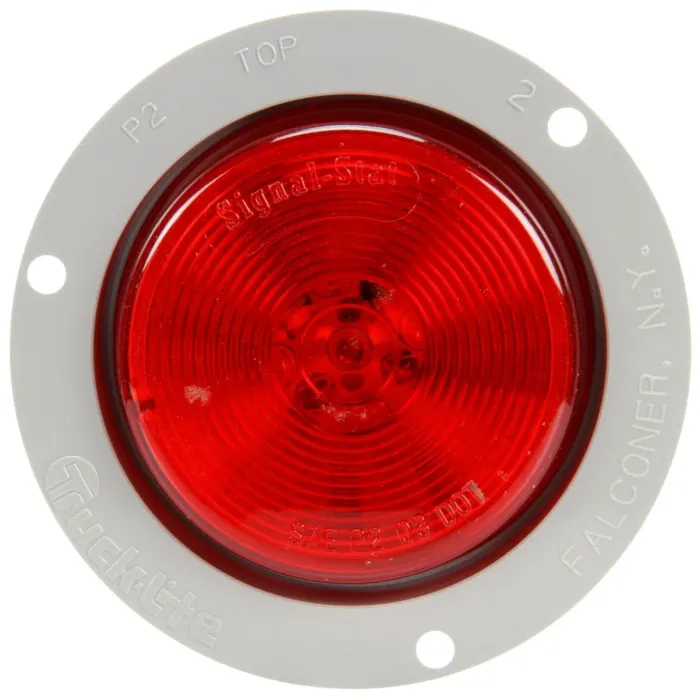

Truck-Lite 1070 Signal-Stat LED Red Round Marker Clearance Light – 2.5", 13-Diode, Gray Flange Flush Mount, PL-10, 12V

The Truck-Lite 1070 Signal-Stat LED Marker Clearance Light is a high-performance, heavy-duty lighting solution engineered for maximum visibility and long-term durability. This 2.5-inch round lamp features a integrated gray polycarbonate flange for a clean, secure flush-mount installation on trucks and trailers. With a high-density 13-diode configuration, the 1070 model delivers a brilliant red signal that significantly outshines standard marker lights.

Key Features & Benefits:

• Integrated Flush Mount Design: The gray polycarbonate flange is molded directly to the housing, providing a low-profile look and a more secure attachment to the vehicle body compared to traditional grommet mounts.

• High-Intensity 13-Diode Pattern: Designed with 13 bright LEDs to provide maximum light dispersion, ensuring your vehicle meets safety standards and is easily seen in low-visibility conditions.

• Rugged Construction: Features a high-impact polycarbonate lens and housing that resists cracks and yellowing. The electronics are fully sealed in epoxy to prevent damage from moisture, dust, and road salt.

• Plug-and-Play Installation: Equipped with a standard PL-10 connector, making it a simple, direct-fit upgrade for existing 12V lighting systems.

• Shock & Vibration Resistant: LED technology eliminates the fragile filaments found in incandescent bulbs, drastically reducing failure rates caused by road vibration.

Technical Specifications:

• Brand: Signal-Stat (by Truck-Lite)

• Part Number: 1070 (Bulk: 1070-3)

• Technology: LED (13 Diodes)

• Lens Color: Red

• Shape: 2.5" Round

• Voltage: 12V DC

• Mounting Type: Flush Mount (Integrated Gray Flange)

• Connection: PL-10

• Material: Polycarbonate Lens & Housing

• Compliance: Meets FMVSS 108, P2, DOT, and SAE standards

• Dimensions: 3.5" (Diameter with flange) x 1.05" (Depth)
