Integrated Gray Polycarbonate Flange: The molded flush-mount gray flange allows for permanent, secure, screw-down surface installation to the vehicle exterior without needing additional mounting brackets or push-in rubber grommets.
-
High-Density 13-Diode LED Configuration: Packs an impressive 13 premium, high-output yellow diodes arranged symmetrically to deliver brilliant, crisp amber illumination that vastly outperforms traditional incandescent filaments.
-
Dual-Purpose P2 & PC Safety Ratings: Fully certified for combination clearance and side marker applications, allowing a single corner-mounted fixture to legally fulfill multiple lighting regulations.
-
Value-Engineered Signal-Stat Quality: Delivers the trusted structural integrity and engineering of Truck-Lite at an economical price tier, making it ideal for fleet-wide maintenance or custom retrofits.
-
Filament-Free Shock Resistant Build: Solid-state LED technology eliminates fragile bulb filaments, making the lamp highly resistant to severe road shocks, potholes, and heavy chassis vibration.
-
Industry-Standard PL-10 Connection: Outfitted with a standard female right-angle PL-10 plug receptacle on the rear, allowing a quick drop-in swap with your existing aftermarket trailer wiring harnesses.
-
Energy-Efficient Low Current Draw: Draws a tiny 0.01 Amp major current on standard 12V DC systems, reducing strain on your alternator and leaving more power available for other critical truck electronics.
-
Hermetically Sealed Polycarbonate Assembly: The high-strength yellow lens and body are molecularly welded together to survive structural road shocks, severe chassis vibration, and flying road debris.
-
DOT, SAE & FMVSS 108 Certified: Fully compliant with all legal Department of Transportation safety standards for commercial motor vehicles.

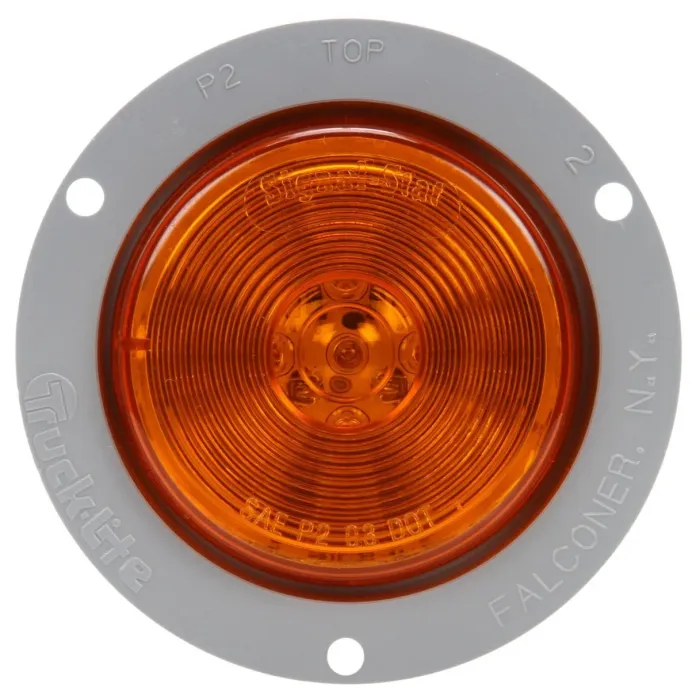

Truck-Lite 1070A Signal-Stat 2.5" Yellow Round 13-Diode LED Flush Mount Marker Clearance Light
Show-Truck Brilliance with Permanent Flange Mounting: Truck-Lite 1070A Signal-Stat 2.5" Yellow Round 13-Diode LED Flush Mount Marker Clearance Light
Give your commercial rig, service vehicle, or fleet trailer premium roadside visibility without overextending your operational budget. The Truck-Lite 1070A (Signal-Stat Series) is a heavy-duty, 2.5-inch round yellow (amber) LED marker and clearance lamp integrated directly into a rugged, permanent gray polycarbonate flush mount flange. Popular on owner-operator rigs and premium custom show trucks, this solid-state lamp allows for clean, direct, screw-down surface installation onto your vehicle's exterior panels, sleeper cabs, headers, or fenders—completely eliminating the need for separate open-back rubber grommets.
The standout feature of the 1070A is its high-density 13-diode LED configuration. By packing 13 high-output diodes into a standard 2.5-inch footprint, this lamp projects an exceptionally intense, uniform amber warning signal that maximizes visibility in dark loading zones, tight yards, and severe highway weather. Boasting strict SAE P2 and PC dual safety ratings, a single corner-mounted light can project a full 180-degree horizontal arc to function simultaneously as both a clearance light and a side marker lamp—optimizing vehicle design, simplifying wiring, and slicing total parts costs. Built with a tough, molecularly welded polycarbonate lens and an industry-standard PL-10 female plug connector, this 12V economy workhorse provides an excellent, long-lasting upgrade over traditional, high-maintenance incandescent bulbs.
Grote: 47373, 47373GRO (Standard profile PL-10 flange equivalents)
Peterson Lighting: M163FA, M197FA, PM-M163FA (PL-10 equivalents)
Truck-Lite: TL1070A, TRU1070A, 1050A (Grommet mount version equivalent), 1053A (10 Series alternative), 1070R (Red flange equivalent version)
Interchange Part Numbers: TRL1070A, TKL1070A, OTR1070A
