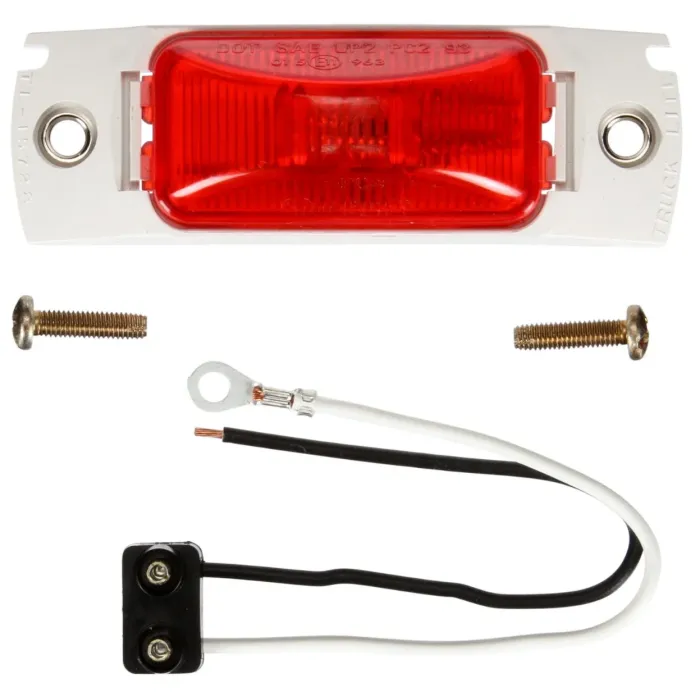

Fulfill your commercial fleet's corner-silhouette lighting mandates even on tight, low-profile spaces with the specialized Truck-Lite 15008R 15 Series Red Rectangular Rail Mount Marker Clearance Light Kit. Purpose-built for the rear corners of commercial trailers, dry vans, and transport bodies, this comprehensive 12V incandescent kit includes a white ABS plastic header mount bracket (Truck-Lite part #15727) engineered with a distinct top cutout. This specialized cutout area allows the light to be mounted flush onto narrow rails and header channels where standard clearance markers simply won't fit.
The 15008R kit is optimized for quick installation and simple maintenance. The 1" x 2" common-sized rectangular red lamp utilizes a user-friendly snap-in mechanism, locking securely into the extra-strength ABS bracket without complex hardware. Constructed with a high-impact polycarbonate lens and housing, the sealed lamp guards its internal single-bulb configuration against harsh highway debris and weathering. Supplied as a complete kit with a 16-gauge dual-wire pigtail that runs from a female PL-10 connector to a ring terminal/stripped-end layout, this kit takes the guesswork out of narrow-rail DOT compliance.
Narrow Rail Cutout Design: Supplied with white ABS bracket mount #15727, featuring a unique top cutout tailored explicitly for flush installation along narrow trailer rails.
Easy Snap-In Installation: The rectangular red lamp snaps seamlessly into the mounting base, eliminating complex mounting fasteners and lowering maintenance turnaround times.
Extra-Strength Plastic Construction: Constructed from a combination of impact-resistant ABS plastic for the mount and high-impact polycarbonate for the lamp housing.
Dual-Zone Geometric Compliance: Engineered with advanced lens optics that meet strict federal FMVSS 108 requirements for both P2 and PC/PC2 clearance ratings.
Complete Hookup Harness: Includes a premium 16-gauge, 2-wire pigtail transitioning from a female PL-10 connection to a ring terminal and stripped-end setup for a secure electrical ground and splice.
Dependable Incandescent Tech: Houses a long-lasting, time-tested 12V DC single-bulb setup that delivers highly uniform red illumination while drawing just 0.33 Amps.
Brand
TRUCK-LITE
Common Size
1 x 2
Current Major Amp
0.33
Housing Material
Polycarbonate
KIT
Yes
Lamp Connection
PL-10
Lens Color
Red
Lens Height
1.2
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lens Width
2.49
Lighting Technology
Incandescent
Mount Type
Bracket Mount Kit
Mount/Trim Color
White
Mount/Trim Material
ABS
Number of Diodes/Bulbs
1
Number of Wires
2
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
15 Series
Voltage
12
Wire Gauge
16
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
Standards Met
P2 | PC
UPC
0735111010197
UNSPSC
25172900
VMRS
072-002-000
Warranty
1-Year
Shipping Weight (lbs)
0.160000
Total Height
1.37
Total Width
4.37
Truck-Lite: 15001R, 15008R3, TRL15008R, LIT15008R, TRU15008R Grote: 46412, 4641243380 TruckPro: TK15008R Other Equivalents: PM95R, SS1551R, 253-406 Fleet Interchanges: Universal replacement kit for 1x2 rectangular narrow-rail top header clearance mounts using a 2-wire pigtail connection layout.
