Narrow Rail Cutout Design: Supplied with white ABS bracket mount #15727, featuring a unique top cutout tailored explicitly for flush installation along narrow trailer rails.
-
Easy Snap-In Installation: The rectangular yellow lamp snaps seamlessly into the mounting base, eliminating complex mounting fasteners and lowering maintenance turnaround times.
-
Extra-Strength Plastic Construction: Constructed from a combination of impact-resistant ABS plastic for the mount and high-impact polycarbonate for the lamp housing.
-
Dual-Zone Geometric Compliance: Engineered with advanced lens optics that meet strict federal FMVSS 108 requirements for both P2 and PC/PC2 clearance ratings.
-
Complete Hookup Harness: Includes a premium 16-gauge, 2-wire pigtail transitioning from a female PL-10 connection to a ring terminal and stripped-end setup for a secure electrical ground and splice.
-
Dependable Incandescent Tech: Houses a long-lasting, time-tested 12V DC single-bulb setup that delivers highly uniform amber illumination while drawing just 0.33 Amps.

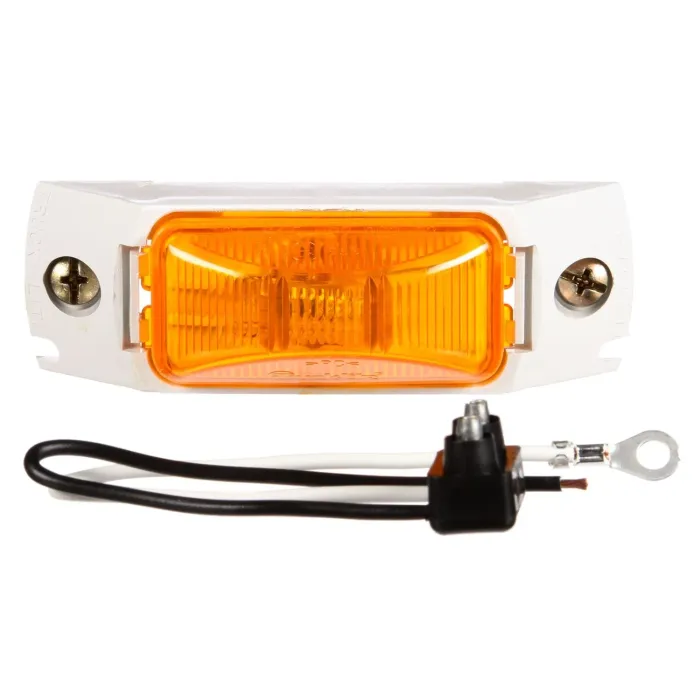

Truck-Lite 15008Y – 15 Series, Rail Mount Incandescent, Yellow Rectangular, 1-Bulb, Marker Clearance Light Kit (PC, White ABS Bracket Mount, PL-10, 12V)
Fulfill your commercial fleet's corner-silhouette lighting mandates even on tight, low-profile spaces with the specialized Truck-Lite 15008Y 15 Series Yellow Rectangular Rail Mount Marker Clearance Light Kit. Purpose-built for the front and side corners of commercial trailers, dry vans, and transport bodies, this comprehensive 12V incandescent kit includes a white ABS plastic header mount bracket (Truck-Lite part #15727) engineered with a distinct top cutout. This specialized cutout area allows the light to be mounted flush onto narrow rails and header channels where standard clearance markers simply won't fit.
The 15008Y kit is optimized for quick installation and simple maintenance. The 1" x 2" common-sized rectangular yellow lamp utilizes a user-friendly snap-in mechanism, locking securely into the extra-strength ABS bracket without complex hardware. Constructed with a high-impact polycarbonate lens and housing, the sealed lamp guards its internal single-bulb configuration against harsh highway debris and weathering. Supplied as a complete kit with a 16-gauge dual-wire pigtail that runs from a female PL-10 connector to a ring terminal/stripped-end layout, this kit takes the guesswork out of narrow-rail DOT compliance.
Truck-Lite: 15001Y, 15008Y3, TRL15008Y, LIT15008Y, TRU15008Y
Grote: 46413, 4641343380
TruckPro: TK15008Y
Other Equivalents: PM95A, SS1551A, 253-407
Fleet Interchanges: Universal replacement kit for 1x2 rectangular narrow-rail top header clearance mounts using a 2-wire pigtail connection layout.
