Diamond Shell Optics: Advanced rectangular acrylic lens layout features a specialized diamond pattern that maximizes light output and eliminates dark spots for clear, legal plate visibility.
-
Efficient 3-Diode LED Core: Delivers bright white lighting while consuming just 0.03 Amps at 12V, reducing total electrical system strain and outlasting standard incandescent bulbs.
-
Complete Turnkey Assembly: Comes as a complete kit containing (1) Model 15 sealed Diamond Shell LED lamp, (1) stylized chrome surface-mount bracket, and a protective sealing gasket.
-
Rugged Snap-Fit Engineering: Designed with a user-friendly snap-fit bracket layout that firmly locks the light into place, allowing for quick installation and simple, tool-free lens servicing.
-
Heavy-Duty Weatherproof Seal: The common 1”x2” footprint lamp housing is hermetically sealed to keep out damaging moisture, rain, high-pressure washes, and corrosive road salts.
-
Hardwired Female PL-10 Output: Features a robust 2-wire integrated lead design terminating in an industry-standard female PL-10 pigtail connector for clean connection to your 12V harness.
SKU
15059
Manufactures SKU
TRUCK-LITE 15059

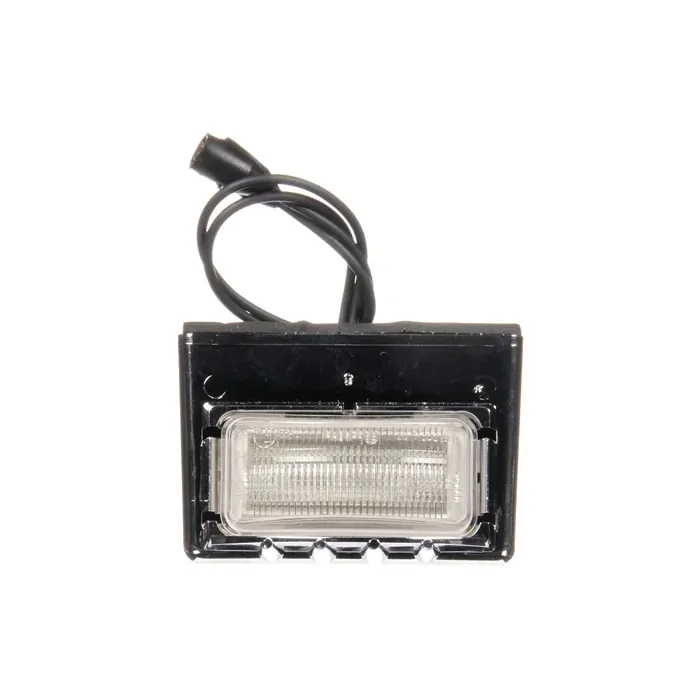

Truck-Lite 15059 15 Series 3-Diode LED Rectangular License Plate Light Kit – 12V, Diamond Shell Lens, Chrome Bracket Mount, Hardwired Female PL-10
$66.02
EA
Elevate your vehicle's rear lighting profile while maintaining full DOT compliance with the Truck-Lite 15059 15 Series 3-Diode LED License Plate Light Kit. Specifically designed for heavy-duty commercial trucks, fleets, and premium trailers, this kit features Truck-Lite’s unique Diamond Shell lens pattern, which optimizes light dispersion for brilliant, uniform coverage across the license plate.
By replacing high-maintenance incandescent fixtures with this solid-state LED solution, you eliminate the risk of broken bulb filaments caused by severe road vibration and chassis shock. Encased in a polished chrome-plated polycarbonate bracket, the Truck-Lite 15059 balances commercial-grade durability with an attractive exterior finish.
Features & Benefits
Brand
TRUCK-LITE
Common Size
1 x 2
Housing Material
Polycarbonate
KIT
Yes
Lamp Connection
Hardwired
Lens Color
Clear
Lens Height
1.2
Lens Material
Acrylic
Lens Shape
Rectangular
Lens Width
2.48
Lighting Technology
LED
Mount Type
Bracket Mount Kit
Mount/Trim Color
Chrome
Mount/Trim Material
Polycarbonate
Mounting Connector Diameter
0.25
Number of Diodes/Bulbs
3
Number of Wires
2
Product Type
License Light
Sealed/Bulb Replaceable
Sealed
Series
15 Series
Voltage
12
Wire Gauge
18
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE | ECE
Standards Met
R4 | J587 | L
UPC
0735111062127
UNSPSC
25172900
VMRS
034-002-042
Warranty
Lifetime
Shipping Weight (lbs)
0.400000
Total Height
2.32
Total Width
3.38
