Integrated "ABS" Text Logo: Features the official "ABS" emblem molded directly onto the lens, satisfying DOT requirements for external trailer anti-lock brake malfunction indicator lamps.
-
Narrow Header Rail Fitment: Slim, low-profile 1" x 2" class geometry allows seamless mounting along thin top channels and cramped trailer side rails.
-
15,000-Hour Extended Bulb Life: Built with a heavy-duty, long-life incandescent single-bulb configuration that lowers fleet maintenance cycles and field failures.
-
Dual-Zone Geometric Compliance: Engineered with advanced wide-angle optics that satisfy federal FMVSS 108 requirements for both P2 and PC/PC2 clearance ratings when mounted at a 45-degree angle.
-
Hermetically Sealed Housing: Fully bonded polycarbonate lens and base seal out moisture, airborne dust, and corrosive winter road chemicals to protect internal contacts.
-
Hassle-Free PL-10 Connection: Built-in dual-pin PL-10 female receptacle ensures a tight, moisture-resistant connection with standard wiring harness plugs.
-
Flexible Mounting Orientation: Integrated snap-lock tabs simplify fleet replacement by allowing the light to be mounted either vertically or horizontally into standard brackets or grommets.

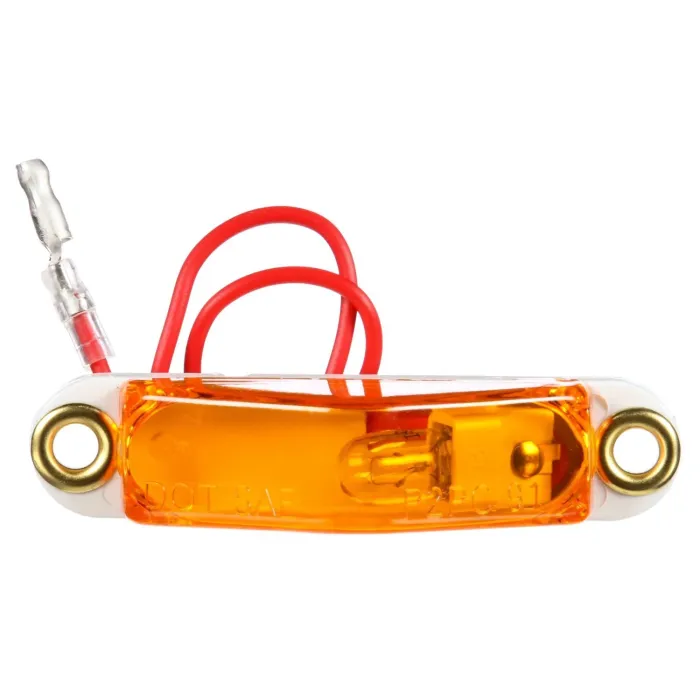

Truck-Lite 1520AHT – 15 Series, Incandescent, Yellow Rectangular, 1-Bulb, Marker Clearance Light (With "ABS" Logo, PC2, PL-10 Connection, 12V)
Ensure total legal compliance and clear system visibility on your commercial transport equipment with the specialized Truck-Lite 1520AHT 15 Series Yellow Rectangular ABS Marker Clearance Light. Purpose-built for heavy-duty trailers equipped with anti-lock braking systems, this 12V incandescent lamp features a distinct, molded "ABS" logo text on the lens. It acts as the required external trailer ABS malfunction indicator lamp (MIL) or warning light, keeping your fleet compliant with federal braking safety mandates.
Engineered with a low-profile rectangular profile, the 1520AHT is compact enough to fit effortlessly within narrow header rails, top rails, and space-restricted side channels. The unit boasts a hermetically sealed polycarbonate lens and housing assembly that provides exceptional durability against rocks, road debris, and high-pressure pressure washers. Inside, an ultra-dependable single incandescent filament is rated for an outstanding 15,000 hours of operational service life. Outfitted with integrated snap-lock tabs and an industry-standard PL-10 pin connection, it allows for a secure vertical or horizontal plug-and-play setup.
Truck-Lite: 1520AHT3, 15203Y, TRL1520AHT, TK1520AHT
NAPA: LIT1520AHT
Fleet Interchanges: Direct-fit swap for standard 1" x 2" rectangular yellow commercial trailer ABS malfunction warning lights utilizing a PL-10 pin connection footprint.
