SKU
15250Y
Manufactures SKU
TRUCK-LITE 15250Y

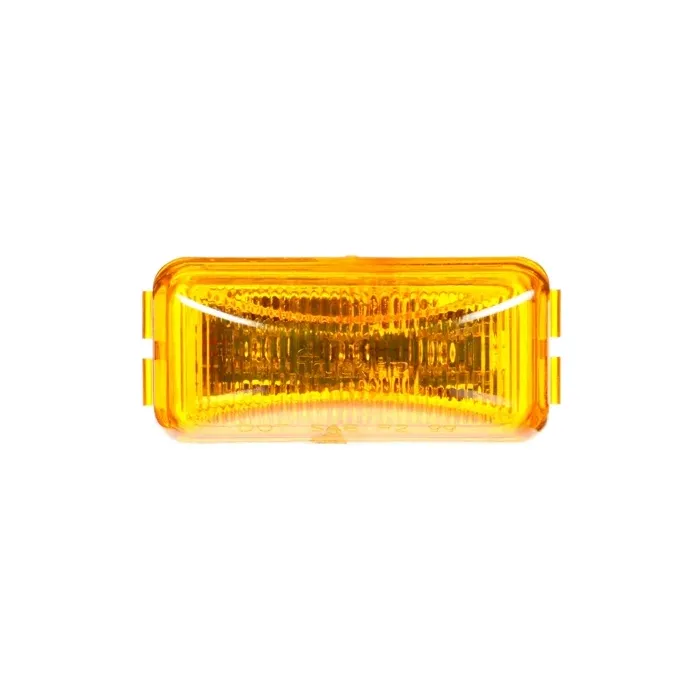

15 Series - LED - Yellow Rectangular - 3 Diode - Marker Clearance Light - P3 - PL-10 - 12V
$9.60
EA
15 Series - LED - Yellow Rectangular - 3 Diode - M/C Light - P3 - 12V
Features & Benefits
Designed to fit applications requiring minimal space - Less susceptible to shock and vibration - Uses standard mounting holes and accessories - Not suitable for PC applications - Draws less current - allowing more power for other vehicle requirements - Direct pin-to-circuit board solders assure vibration-resistant contacts
Brand
TRUCK-LITE
Common Size
1 x 2
Current Major Amp
0.05
Housing Material
Polycarbonate
KIT
No
Lamp Connection
PL-10
Lens Color
Yellow
Lens Height
1.2
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lens Width
2.49
Lighting Technology
LED
Mount Type
Bracket Mount
Number of Diodes/Bulbs
3
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
15 Series
Voltage
12
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
Standards Met
P2 | P3
UPC
0735111043874
UNSPSC
25172900
VMRS
034-004-021
Warranty
3-Year
Shipping Weight (lbs)
0.070000
Total Height
1.2
Total Width
2.49
