Advanced LED Technology: Equipped with a 2-diode LED pattern that provides bright, crisp red light while drawing significantly less power (0.05A) than traditional incandescent lamps.
-
Corrosion Protection: Electronics are fully encapsulated in epoxy to prevent damage from moisture, vibration, and road chemicals.
-
Compact Slim-Line Profile: The rectangular 1" x 2" footprint allows for installation in narrow spaces and tight mounting areas.
-
Easy Plug-and-Play Installation: Uses a standard PL-10 female connection for quick replacement and compatibility with existing wiring harnesses.
-
Durable Construction: Built with a rugged polycarbonate lens and housing that resists impact and UV fading.
-
2-Year Warranty: Backed by Truck-Lite’s Signal-Stat series warranty for peace of mind and reliable performance.
SKU
1560
Manufactures SKU
TRUCK-LITE 1560

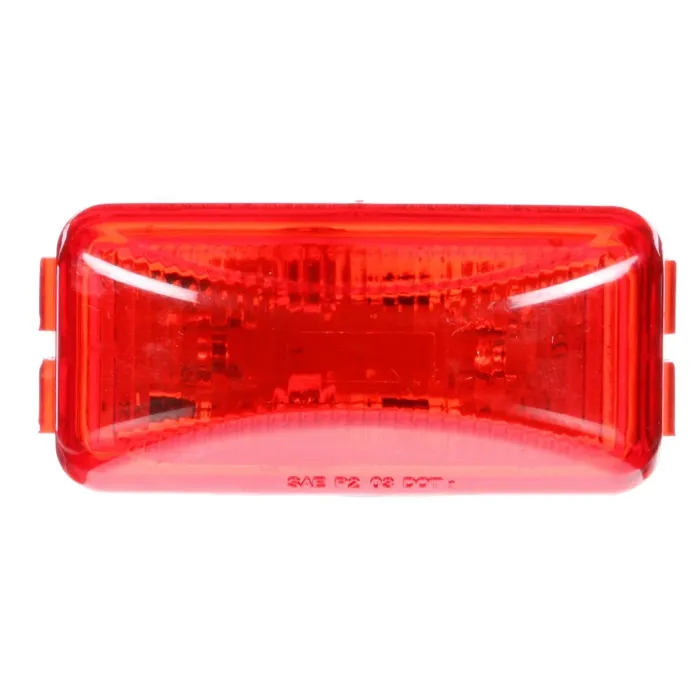

Truck-Lite 1560 Signal-Stat 2-Diode LED Red Rectangular Marker Clearance Light – 12V
$5.62
EA
The Truck-Lite 1560 Signal-Stat LED Marker Clearance Light is a high-performance, cost-effective lighting solution designed for maximum visibility and long-lasting durability. Featuring a slim, rectangular 1" x 2" design, this red LED light is popular among owner-operators and show truck enthusiasts. Built with encapsulated electronics, the 1560 model is engineered to withstand moisture, corrosion, and the toughest road conditions, making it an essential upgrade for any commercial vehicle.
Key Details
Brand
Signal-Stat
Common Size
1 x 2
Current Major Amp
0.05
Housing Material
Polycarbonate
KIT
No
Lamp Connection
PL-10
Lens Color
Red
Lens Height
1.2
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lens Width
2.49
Lighting Technology
LED
Mount Type
Grommet Mount
Number of Diodes/Bulbs
2
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
Signal-Stat
Voltage
12
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
Standards Met
P2 | PC
UPC
0735111155751
UNSPSC
25172900
VMRS
034-004-021
Warranty
2-Year
Shipping Weight (lbs)
0.090000
Total Height
1.2
Total Width
2.49
Related Products
Check items to add to the cart or
Grote: G1502
NAPA: LIT1560 / 1560
Peterson: 161R
VMRS: 034-004-021
Alternative Part Numbers: 1560-1, 1560-3 (Bulk), SS1560-S
