2-in-1 Functionality: Acts as both a side marker/clearance light and a legal reflector, simplifying your trailer's lighting setup.
-
Shock-Mount Technology: Engineered with a specialized shock mount to protect the bulb from road vibration, significantly extending bulb life.
-
Bulb Replaceable Design: Features a removable lens for quick and easy bulb replacement, reducing maintenance costs over time.
-
Rugged Construction: Built with a high-impact red acrylic lens and housing to withstand harsh weather and road debris.
-
Single-Stud Mounting: Designed for a secure 1-stud mount, making it compatible with a wide variety of trailer frames and brackets.
-
Hardwired Connection: Comes with a 1-wire hardwired lead and a stripped end for a reliable electrical connection.
SKU
1570
Manufactures SKU
TRUCK-LITE 1570

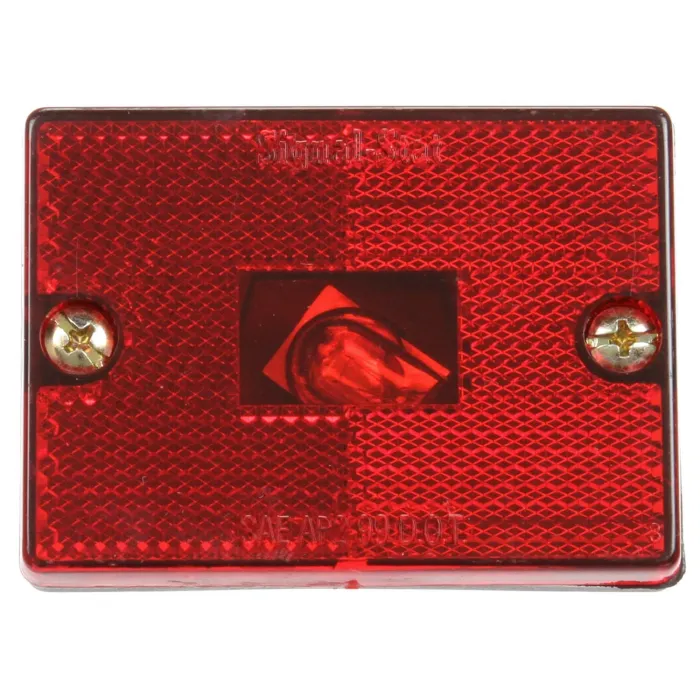

Truck-Lite 1570 Signal-Stat Incandescent Red Rectangular Marker Clearance Light – Reflectorized, 12V
$6.96
EA
The Truck-Lite 1570 Signal-Stat Marker Clearance Light is a versatile and durable lighting solution commonly found on boat, utility, and horse trailers. This red rectangular lamp features a built-in reflector, allowing it to serve as a legal reflector when mounted between 15 and 60 inches from ground level on trailers less than 80 inches wide. Designed for longevity and ease of use, the 1570 model is a reliable choice for maintaining safety and DOT compliance on the road.
Features & Benefits
Brand
Signal-Stat
Common Size
2 x 3
Current Major Amp
0.33
Housing Material
Acrylic
KIT
No
Lamp Connection
Hardwired
Lens Color
Red
Lens Height
2.09
Lens Material
Acrylic
Lens Shape
Rectangular
Lens Width
2.84
Lighting Technology
Incandescent
Mount Type
1 Stud Mount
Mounting Connector Diameter
0.25
Number of Diodes/Bulbs
1
Number of Wires
1
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Bulb Replaceable
Series
Signal-Stat
Voltage
12
Wire Gauge
18
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
Standards Met
A | P2
UPC
0724956053407
UNSPSC
25172900
VMRS
034-004-021
Warranty
1-Year
Shipping Weight (lbs)
0.170000
Total Height
2.84
Total Width
2.09
Replacement Lens: Truck-Lite 8947 (Red)
Yellow Version: Truck-Lite 1570A (Yellow/Amber)
NAPA Cross: 1570 / LIT1570
VMRS: 034-004-021
Common Applications: Used in Truck-Lite trailer kits 533DK, 534D, and 535D
