SKU
1570A
Manufactures SKU
TRUCK-LITE 1570A

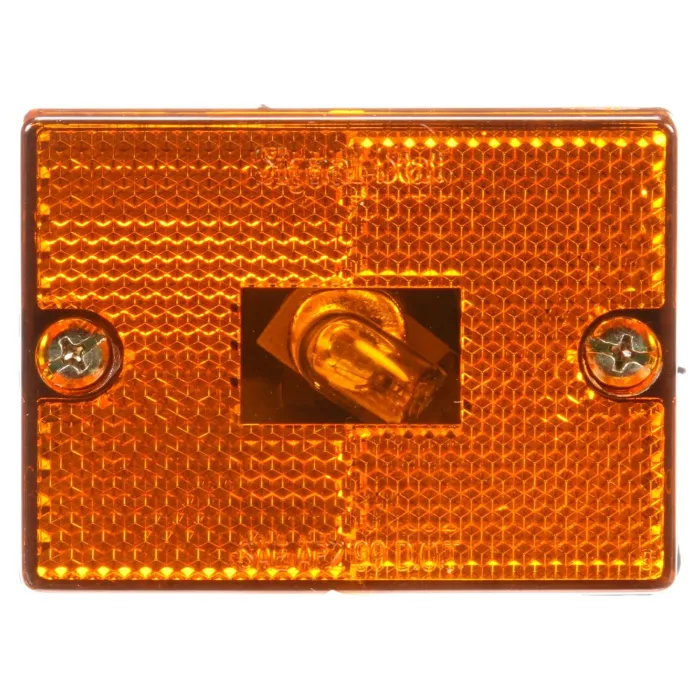

Signal-Stat - Incandescent - Yellow Rectangular - 1 Bulb - Marker Clearance Light - P2 - 1 Stud Mount - Reflectorized - Hardwired - Stripped End - 12V
$7.78
EA
Signal-Stat - Reflectorized - Incan. - Yellow Rectangular - 1 Bulb - M/C Light - P2 - 1 Stud - 12V
Features & Benefits
Popular boat and utility trailer lamp - Shock/Mount for maximum bulb life - Serves as legal reflector when mounted between 15 and 60 inches from ground level on trailers less than 80"wide
Brand
Signal-Stat
Common Size
2 x 3
Current Major Amp
0.33
Housing Material
Acrylic
KIT
No
Lamp Connection
Hardwired
Lens Color
Yellow
Lens Height
2.09
Lens Material
Acrylic
Lens Shape
Rectangular
Lens Width
2.84
Lighting Technology
Incandescent
Mount Type
1 Stud Mount
Mount/Trim Color
Yellow
Mounting Connector Diameter
0.25
Number of Diodes/Bulbs
1
Number of Wires
1
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Bulb Replaceable
Series
Signal-Stat
Voltage
12
Wire Gauge
18
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
Standards Met
A | P2
UPC
0724956053414
UNSPSC
25172900
VMRS
034-004-021
Warranty
1-Year
Shipping Weight (lbs)
0.160000
Total Height
2.84
Total Width
2.09
