Premium Stainless Steel Bracket: Crafted from a rugged, silver stainless steel base designed to withstand harsh weather, road debris, and heavy vibration without rusting.
-
Compact, Low-Profile Fit: Perfectly engineered to fit into narrow header rails and tight mounting spaces common on commercial trucks and large trailers.
-
Convenient Snap-Lock Tabs: Features integrated snap-lock tabs that secure the individual lamps firmly in place, allowing for fast, tool-free light installation or maintenance.
-
Standard 6" Center Spacing: Keeps your vehicle compliant with safety laws by perfectly spacing the three red marker lights on standard 6-inch centers.
-
Seamless LED Upgrade Route: Built as part of the versatile Truck-Lite 15 Series family, this kit allows you to easily substitute or upgrade to energy-efficient Truck-Lite LED lamps in the future using the exact same footprint.
-
Complete Professional Kit: Includes the pre-drilled silver mounting bracket, three sealed red rectangular lights, a 14-gauge 2-wire setup, and a PL-10 plug connection adapting to .180 bullet and ring terminals for a clean installation.
-
FMVSS 108 Compliant: Certified to meet strict FMVSS 108, CMVSS 108, DOT, and SAE standards for P2 applications.
SKU
15741R
Manufactures SKU
TRUCK-LITE 15741R

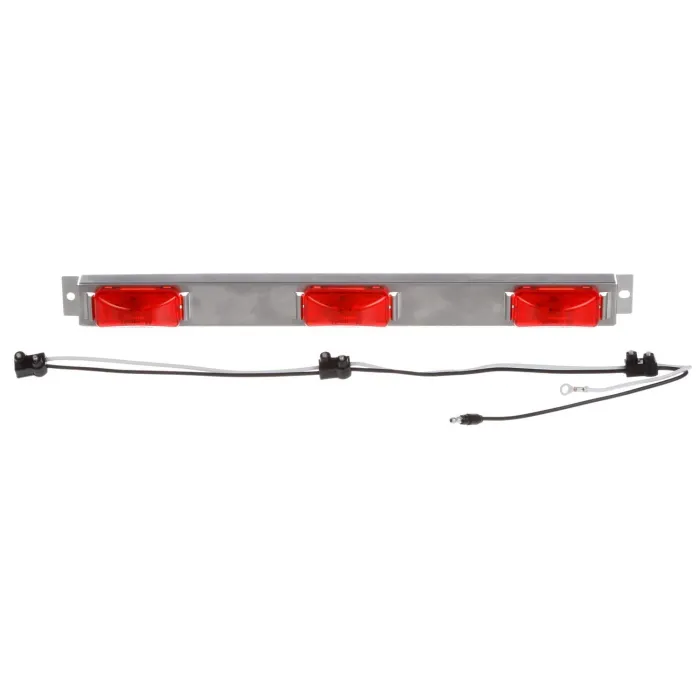

Truck-Lite 15741R – 15 Series Incandescent Identification Bar, Rectangular, Red, 3 Lights, 6" Centers, Silver Stainless Steel, 12V, Kit
$27.20
EA
Ensure full legal compliance and maximum rear-end visibility for your commercial vehicle or fleet with the Truck-Lite 15741R 15 Series Identification Bar Kit. This heavy-duty 3-light ID bar features a streamlined, low-profile design that easily mounts into limited header rail spaces, serving as a direct replacement for Ford heavy trucks and similar applications. Built with a premium, corrosion-resistant stainless steel bracket and three pre-wired red 1" x 2" rectangular incandescent lamps, this complete 12V kit delivers the classic, dependable look and reliability your truck needs.
Features & Benefits
Brand
TRUCK-LITE
Common Size
1 x 2
Current Major Amp
0.33
Housing Material
Polycarbonate
KIT
Yes
Lamp Connection
PL-10
Lens Color
Red
Lens Height
1.21
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lens Width
2.49
Lighting Technology
Incandescent
Mount Type
2 Screw Bracket Mount
Mount/Trim Color
Silver
Mount/Trim Material
Stainless Steel
Mounting Connector Diameter
0.218
Number of Diodes/Bulbs
1
Number of Lights
3
Number of Wires
2
Product Type
Identification Bar
Sealed/Bulb Replaceable
Sealed
Series
15 Series
Voltage
12
Wire Gauge
14
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
P2
UPC
0735111135579
UNSPSC
39111706
VMRS
034-004-149
Warranty
1-Year
Shipping Weight (lbs)
0.700000
Total Height
1.38
Total Width
16.5
