Universal OmniVolt Innovation: Seamlessly operates in electrical systems ranging from 10 to 30 volts, ensuring full compatibility with both 12V trailers and 24V commercial chassis worldwide.
-
ECE European Approved: E-Mark certified to comply with rigorous European ECE highway safety standards, making it ideal for international transport operations.
-
Built-In Diamond Shell Reflector: Features a highly effective reflectorized lens. When mounted with zero rollout or rollback, it satisfies strict SAE J594f standards for a legal safety reflector, enhancing vehicle presence even when unpowered.
-
Ultra-Low Amperage Draw: The efficient 3-diode LED layout pulls a mere 0.02 Amps. This drastically reduces the total strain on your vehicle's alternator, freeing up power for other critical electronics.
-
Standard Retrofit Fitment: Designed using standard mounting holes and common dimensions, allowing for a fast, direct-replacement upgrade over aging incandescent or lower-performing lights.
-
Rugged, Weatherproof Shell: Built with a heavy-duty, sealed acrylic lens and housing designed to resist impact and completely exclude moisture, dust, and road salt for long-term road survival.
-
Hardwired Blunt Cut Wire Lead: Comes pre-outfitted with a 2-wire, 18-gauge blunt-cut fly lead (approximately 209mm in length) for a reliable, hardwired universal installation.
SKU
18011R
Manufactures SKU
TRUCK-LITE 18011R

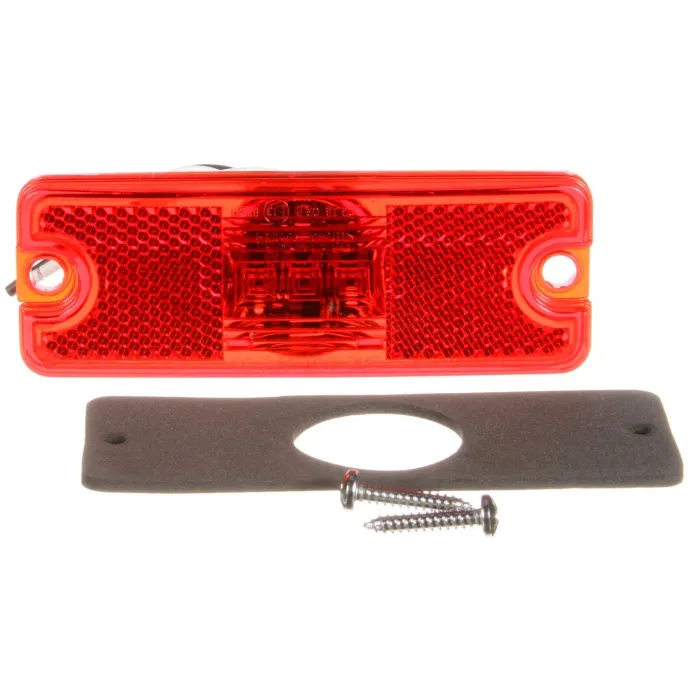

Truck-Lite 18011R – 18 Series LED Red Rectangular 3-Diode Marker Clearance Light, ECE European Approved, 2-Screw Mount, Reflectorized, Hardwired, Blunt Cut, 12V / 24V (10-30V OmniVolt), Kit
$31.40
EA
Equip your commercial fleet, international transport rig, or heavy-duty trailer with the exceptional reliability of the Truck-Lite 18011R 18 Series LED Marker Clearance Light Kit. Engineered with Truck-Lite’s advanced OmniVolt technology, this red rectangular 2" x 5" marker lamp functions optimally across a wide 10V to 30V power spectrum, making it the perfect choice for both standard 12V domestic and heavy-duty 24V global electrical systems. Boasting strict European ECE approval and an integrated Diamond Shell reflectorized lens, this 3-diode LED kit maximizes rear-end safety while significantly lowering current consumption.
Key Details
Brand
TRUCK-LITE
Common Size
2 x 5
Current Major Amp
0.02
Housing Material
Acrylic
KIT
Yes
Lamp Connection
Hardwired
Lens Color
Red
Lens Height
1.63
Lens Material
Acrylic
Lens Shape
Rectangular
Lens Width
4.5
Lighting Technology
LED
Mount Type
2 Screw
Mount/Trim Color
Red
Mounting Connector Diameter
1.375
Number of Diodes/Bulbs
3
Number of Wires
2
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
18 Series
Voltage
12 | 24
Wire Gauge
18
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE | ECE
Standards Met
A | P2
UPC
0735111062387
UNSPSC
25172900
VMRS
034-004-021
Warranty
3-Year
Shipping Weight (lbs)
0.400000
Total Height
1.63
Total Width
4.5
Can be a similar match to Truck-Lite 13001R; however, this is slightly larger.
