Weatherproof Packard Connection: Comes pre-terminated with a genuine Packard Connector 12010973 on a hardwired lead, providing an airtight, plug-and-play seal that completely shuts out water, salt, and grime.
-
Integrated Diamond Shell Reflector: Features an advanced reflectorized lens. When mounted with zero rollout or rollback, it complies with strict safety standards for a legal reflex reflector, maintaining vehicle visibility even when parked or unpowered.
-
Global ECE & DOT Certification: Highly versatile engineering meets domestic FMVSS 108 standards as well as strict European ECE regulations, making it perfect for international logistics and fleets.
-
Low Current Amperage Draw: The high-output 3-diode LED configuration pulls a meager 0.05 Amps, freeing up critical electrical capacity for the rest of your truck or trailer's system.
-
Standard Retrofit Footprint: Uses industry-standard 2-screw mounting holes and layout accessories, allowing for a fast, hassle-free replacement upgrade over aging incandescent lamps.
-
Sonic-Welded Sealed Design: The impact-resistant red acrylic housing and lens are permanently sealed together to safeguard internal solid-state electronics from rigorous road vibration and shock.
-
Premium Lifetime Warranty: Backed by Truck-Lite's elite Limited Lifetime Lamp Warranty for ultimate peace of mind.
SKU
18060R
Manufactures SKU
TRUCK-LITE 18060R

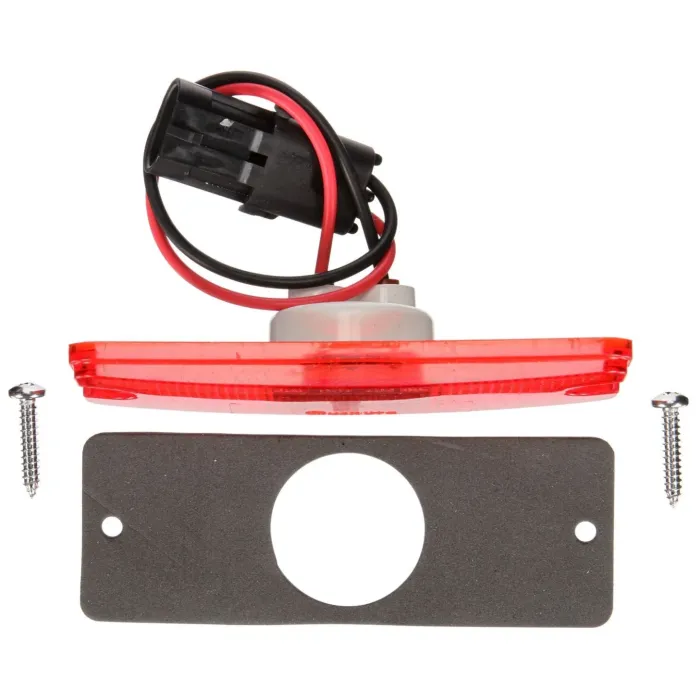

Truck-Lite 18060R – 18 Series LED Red Rectangular 3-Diode Marker Clearance Light, ECE European Approved, 2-Screw Mount, Reflectorized Diamond Shell, Hardwired, Packard Connector 12010973, 12V, Kit
$32.70
EA
Upgrade your commercial vehicle’s backend safety with the exceptionally durable Truck-Lite 18060R 18 Series LED Marker Clearance Light Kit. This premium 12V red rectangular 2" x 5" marker lamp features a brilliant 3-diode LED pattern engineered to maximize rear highway visibility while drawing a minimal 0.05 Amps. Outfitted with Truck-Lite's signature Diamond Shell reflectorized lens and an integrated, weatherproof Packard 12010973 connection, this plug-and-play kit is built for long-term fleet service, severe weather resistance, and rapid installation.
Features & Benefits
Brand
TRUCK-LITE
Common Size
2 x 5
Current Major Amp
0.05
Housing Material
Acrylic
KIT
Yes
Lamp Connection
Hardwired
Lens Color
Red
Lens Height
1.63
Lens Material
Acrylic
Lens Shape
Rectangular
Lens Width
4.5
Lighting Technology
LED
Mount Type
2 Screw
Mount/Trim Color
Red
Number of Diodes/Bulbs
3
Number of Wires
2
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
18 Series
Voltage
12
Wire Gauge
18
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
Standards Met
A | P2
UPC
0735111137894
UNSPSC
25172900
VMRS
034-004-253
Warranty
Lifetime
Shipping Weight (lbs)
0.230000
Total Height
1.63
Total Width
4.5
