Watertight Weather Pack Plug: Comes pre-terminated with a genuine Weather Pack Connector 12010972 on a hardwired lead, forming an airtight barrier that completely shuts out water, chemicals, and road grime.
-
Integrated Diamond Shell Reflector: Built with an advanced reflectorized lens. When mounted flush with no rollout or rollback, it complies with strict safety standards for a legal reflex reflector, keeping your vehicle visible even when parked or unpowered.
-
Filament-Free Solid-State Longevity: Advanced LED technology eliminates brittle internal filaments, making this fixture highly resistant to severe shock and punishing road vibration.
-
Low Current Amperage Draw: Pulling a meager 0.05 Amps, it drastically reduces current load, leaving more electrical capacity available for other critical vehicle systems.
-
Standard Retrofit Configuration: Uses industry-standard 2-screw mounting holes and footprint dimensions, allowing for a fast, hassle-free replacement over older, dim incandescent lights.
-
Scratch & Fade Resistant Acrylic: Both the red housing and lens are crafted from high-grade acrylic, sonic-welded together to protect internal circuitry for life.
-
Premium Lifetime Warranty: Rest easy on the road knowing this heavy-duty commercial lighting kit is backed by Truck-Lite's elite Limited Lifetime Lamp Warranty.
SKU
18070R
Manufactures SKU
TRUCK-LITE 18070R

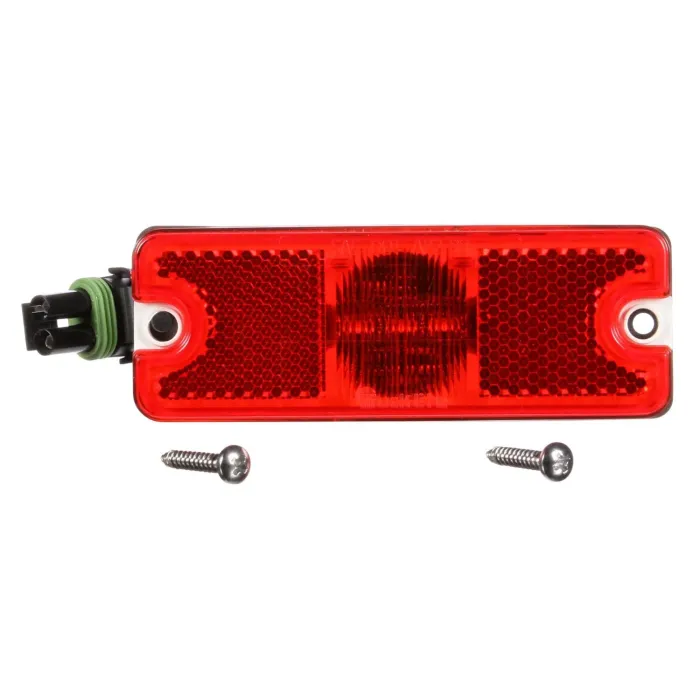

Truck-Lite 18070R – 18 Series LED Red Rectangular 3-Diode Marker Clearance Light, P2, 2-Screw Mount, Reflectorized Diamond Shell, Hardwired, Weather Pack Connector 12010972, 12V, Kit
$38.94
EA
Protect your commercial fleet and upgrade rear vehicle visibility with the ultra-durable Truck-Lite 18070R 18 Series LED Marker Clearance Light Kit. This premium 12V red rectangular 2" x 5" marker lamp is engineered with an efficient 3-diode LED array that delivers high-output safety lighting while drawing an ultra-low 0.05 Amps. Outfitted with Truck-Lite’s signature Diamond Shell reflectorized lens and an integrated, heavy-duty Weather Pack 12010972 plug, this plug-and-play kit delivers maximum protection against moisture, corrosive road salt, and harsh highway environment demands.
Features & Benefits
Brand
TRUCK-LITE
Common Size
2 x 5
Current Major Amp
0.05
Housing Material
Acrylic
KIT
Yes
Lamp Connection
Hardwired
Lens Color
Red
Lens Height
1.63
Lens Material
Acrylic
Lens Shape
Rectangular
Lens Width
4.5
Lighting Technology
LED
Mount Type
2 Screw
Mount/Trim Color
Red
Mounting Connector Diameter
1.375
Number of Diodes/Bulbs
3
Number of Wires
2
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
18 Series
Voltage
12
Wire Gauge
18
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
Standards Met
A | P2
UPC
0735111062509
UNSPSC
25172900
VMRS
034-004-253
Warranty
Lifetime
Shipping Weight (lbs)
0.200000
Total Height
1.63
Total Width
4.5
