SKU
18088R
Manufactures SKU
TRUCK-LITE 18088R

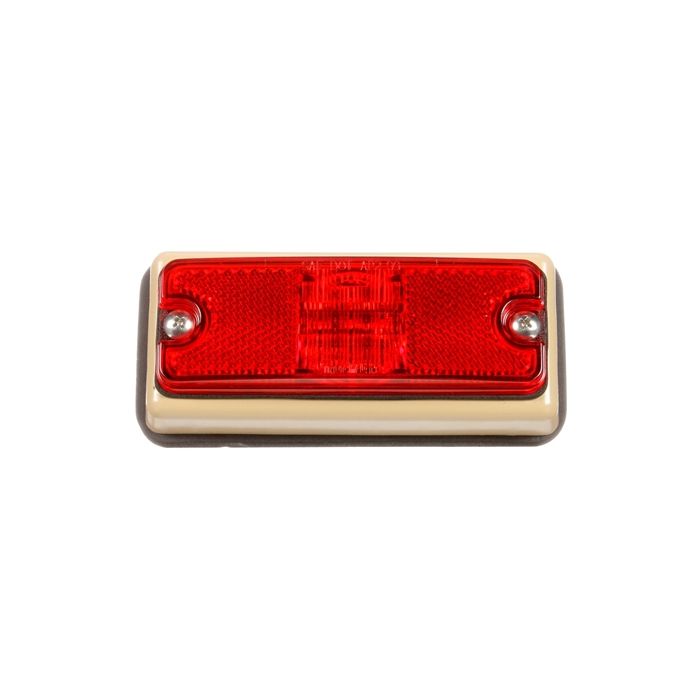

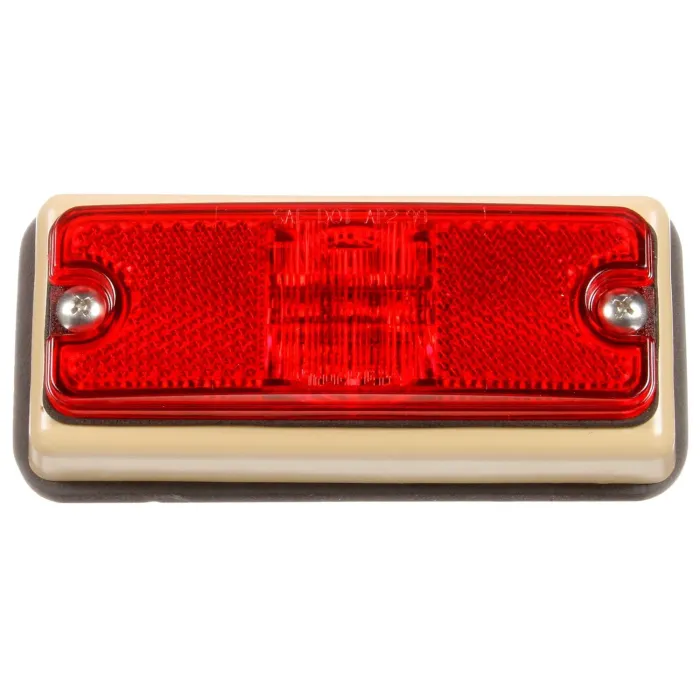

18 Series - LED - Red Rectangular - 3 Diode - Marker Clearance Light - P2 - 2 Screw Bracket Mount - Hardwired - Female Military Boot/Ring Terminal - 12-24V - Kit
$33.15
EA
18 Series - LED - Red Rectangular - 3 Diode - M/C Light - P2 - 2 Screw Bracket Mount - 12-24V - Kit
Features & Benefits
Complies with SAE J592 and J594 when mounted horizontally - Brackets utilize standard military color scheme - Complies with SAE J592 when mounted horizontally between 0 degrees to 34 degrees rollback - OmniVolt Technology (12 or 24V systems will run without adjustment) - LED life surpasses the 2k hours of incandescent bulbs by nearly 50x - Lens and housing assemblies constructed of impact-resistant polycarbonate - All electronics fully sealed in epoxy - making lamps less susceptible to shock and vibration - Faster start-up times and low current draw
Brand
TRUCK-LITE
Common Size
2 x 5
Current Major Amp
0.03
Housing Material
Polycarbonate
KIT
Yes
Lamp Connection
Hardwired
Lens Color
Red
Lens Height
1.6
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lens Width
4.5
Lighting Technology
LED
Mount Type
2 Screw Bracket Mount
Mount/Trim Color
Tan
Mount/Trim Material
Polycarbonate
Number of Diodes/Bulbs
3
Number of Wires
2
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
18 Series
Voltage
12 | 24
Wire Gauge
16
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
NSN
6220-01-550-1491
Standards Met
A | P2
UPC
0735111166443
UNSPSC
25172900
VMRS
034-004-021
Warranty
1-Year
Shipping Weight (lbs)
1.000000
Total Height
1.6
Total Width
4.5
