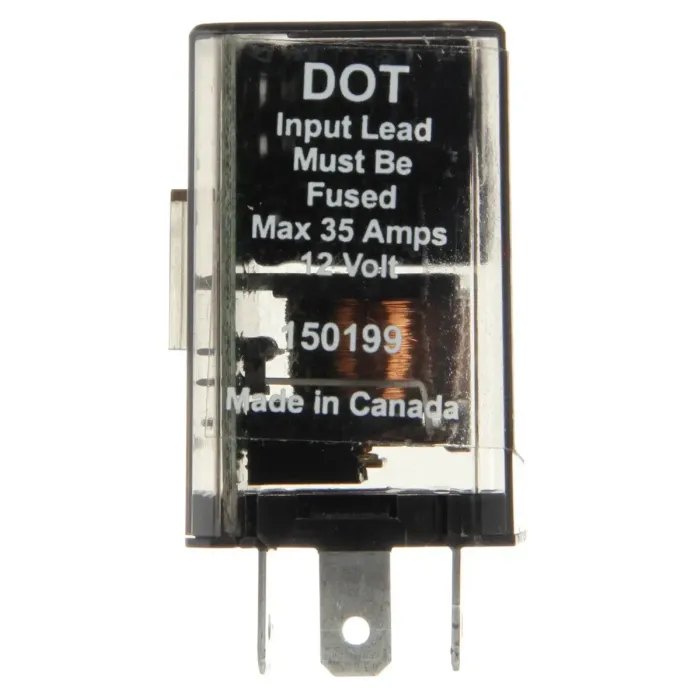

Signal-Stat - 16 Light Electro-Mechanical - Plastic Flasher Module - 70-120fpm - 12V - 3 Blade Terminals

Reliable Heavy-Duty Signaling with the Signal-Stat 183 Flasher Module

The Truck-Lite 183 Signal-Stat Flasher Module is a high-performance electro-mechanical flasher designed for heavy-duty trucks and commercial vehicles. Engineered for durability and precision, this 12V module provides a consistent flash rate for up to 16 lamps, ensuring your vehicle remains visible and compliant with road safety regulations.

Built with an ISO relay and electronic control circuits, the Truck-Lite 183 offers a rapid response time, with the first flash occurring less than 1.3 seconds after startup. Its rugged plastic housing and 3-blade terminal connection make it a dependable replacement for older or failing flasher units in demanding environments.

Key Features & Benefits:

• High Lamp Capacity: Supports up to 16 lamps (35 Amp max) for extensive visibility across large vehicle setups.

• Precision Timing: Delivers a steady flash rate of 70 to 120 flashes per minute (FPM).

• Audible Safety: Features a loud, audible clicking sound to alert the driver that signals are active.

• Superior Endurance: Tested to function at 13V for 36 continuous hours.

• Compliance Guaranteed: Meets FMVSS 108 and SAE J590 & J945 standards.

• Easy Installation: Standard 3-blade terminal design for a "plug-and-play" replacement.

Technical Specifications:

• Brand: Truck-Lite / Signal-Stat

• Part Number: 183 (Cross-ref: GROTE 44700, VELVAC 091211)

• Voltage: 12V

• Amperage: 35 Amp Max

• Terminal Type: 3-Blade Terminals

• Housing Material: High-grade Black Plastic

• Operating Rate: 70-120 FPM

• Dimensions: 2.2" (H) x 1.12" (W) x 1.12" (D)
