SKU
18300Y
Manufactures SKU
TRUCK-LITE 18300Y

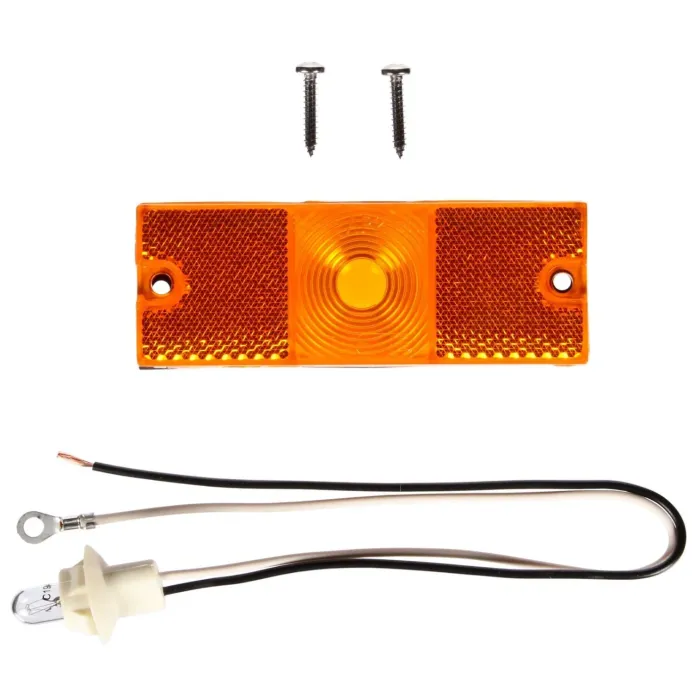

18 Series - Incandescent - Yellow Rectangular - 1 Bulb - Marker Clearance Light - P2 - 2 Screw - Reflectorized - Socket Assembly - Ring Terminal/Stripped End - 12V - Kit
$8.41
EA
18 Series - Reflectorized - Incan. - Yellow Rectangular - 1 Bulb - M/C Light - P2 - 2 Screw - 12V - Kit
Features & Benefits
Sonically welded lens and housing - Replaceable bulb - Not suitable for PC requirements - Replaces Signal-Stat 1572/1572A
Brand
TRUCK-LITE
Common Size
2 x 5
Current Major Amp
0.27
Housing Material
ABS
KIT
Yes
Lamp Connection
Socket Assembly
Lens Color
Yellow
Lens Height
1.63
Lens Material
Acrylic
Lens Shape
Rectangular
Lens Width
4.5
Lighting Technology
Incandescent
Mount Type
2 Screw
Mount/Trim Color
Yellow
Mounting Connector Diameter
0.2
Number of Diodes/Bulbs
1
Number of Wires
2
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
18 Series
Voltage
12
Wire Gauge
18
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
Standards Met
A | P2
UPC
0735111039587
UNSPSC
25172900
VMRS
034-004-024
Warranty
1-Year
Shipping Weight (lbs)
0.150000
Total Height
1.63
Total Width
4.5
