Space-Saving Low Profile: Specifically engineered to fit into limited mounting spaces and narrow header rails common on commercial truck bodies and over-the-road trailers.
-
Dual-Bulb Backup Safety: Features a traditional 2-bulb configuration (0.33 Amp draw) ensuring your trailer stays illuminated and visible even if one bulb filament fails.
-
Multi-Angle PC Compliance: Fully meets strict FMVSS 108 PC requirements for combination clearance and side marker lighting when mounted horizontally at a 45-degree angle using a compatible base.
-
Fast Snap-Lock Installation: Built with integrated snap-lock tabs that allow the lamp to lock effortlessly into bracket mounts without requiring tedious hand tools.
-
Hermetically Sealed Longevity: Polycarbonate lens and housing are 100% sonically welded together to form a permanent, moisture-proof barrier that keeps out rain, dirt, and corrosive road salt.

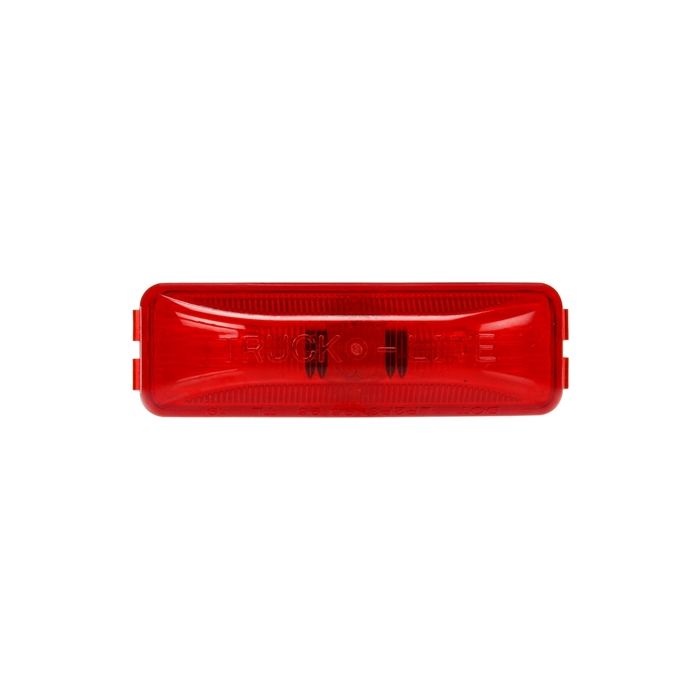

19 Series - Base Mount - Incandescent - Red Rectangular - 2 Bulb - Marker Clearance Light - PC - 19 Series Male Pin - 12V
Maximize the rear-end safety and side visibility of your commercial vehicles with the industry-standard Truck-Lite 19200R 19 Series Incandescent Marker Clearance Light. Purpose-built for dry van trailers, vocational truck bodies, refrigerated units, and utility trailers, this 1" x 4" rectangular red lamp delivers low-profile, rugged dependability that fleet managers and independent owner-operators trust to stay fully DOT compliant.
What sets the Truck-Lite 19200R apart is its versatile compliance design. Boasting an official PC safety rating, this marker lamp can be mounted horizontally on a 45-degree corner angle to satisfy both side marker and rear clearance light legal mandates simultaneously. This dual-purpose utility cuts down on vehicle hardware costs and simplifies trailer wiring layouts. The light assembly features a heavy-duty, high-impact polycarbonate red lens sonically welded to its matching base, completely safeguarding the internal 2-bulb array from severe chassis shock, highway vibrations, and automated wash system moisture.
Retrofitting older or damaged fleet components is exceptionally simple. The 19200R serves as a direct-fit premium upgrade or replacement for legacy Signal-Stat 1900 series light configurations. It features an integrated industry-standard 19 Series male pin (2-prong style) plug connection on the reverse side, allowing technicians to swiftly lock the lamp into existing wiring sockets without manual wire splicing. Keep your transport operations moving smoothly with this out-of-the-box, heavy-duty 12V safety lighting solution.
Note: This is a standalone, hermetically sealed lamp unit. Base mounting brackets and external wire harnesses are sold separately.
