SKU
19200Y
Manufactures SKU
TRUCK-LITE 19200Y

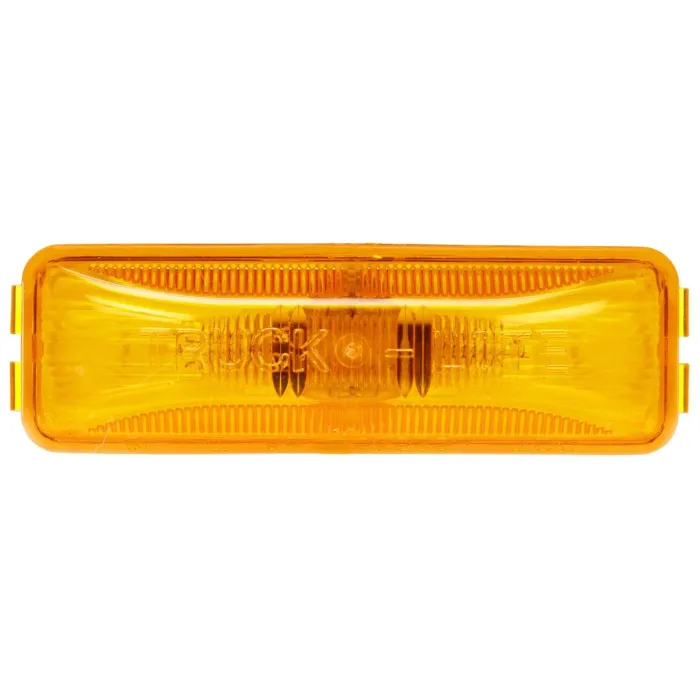

19 Series - Base Mount - Incandescent - Yellow Rectangular - 2 Bulb - Marker Clearance Light - PC - 19 Series Male Pin - 12V
$4.00
EA
19 Series - Incan. - Yellow Rectangular - 2 Bulb - Base - M/C Light - PC - 12V
Features & Benefits
Designed to fit in limited mounting areas - Fits in most narrow header rails - Can be mounted vertically or horizontally - Snap-lock tabs allow quick and easy installation - Suitable for PC requirements on a 45-degree angle when using base mounts on page 137 - Replaces Signal-Stat 1900 series
Brand
TRUCK-LITE
Common Size
1 x 4
Current Major Amp
0.33
Housing Material
Polycarbonate
KIT
No
Lamp Connection
19 Series Male Pin
Lens Color
Yellow
Lens Height
1.23
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lens Width
3.78
Lighting Technology
Incandescent
Mount Type
Bracket Mount
Number of Diodes/Bulbs
2
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
19 Series
Voltage
12
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
Standards Met
P2 | P3 | PC
UPC
0735111044604
UNSPSC
25172900
VMRS
034-004-024
Warranty
1-Year
Shipping Weight (lbs)
0.080000
Total Height
1.23
Total Width
3.78
