SKU
19275R
Manufactures SKU
TRUCK-LITE 19275R

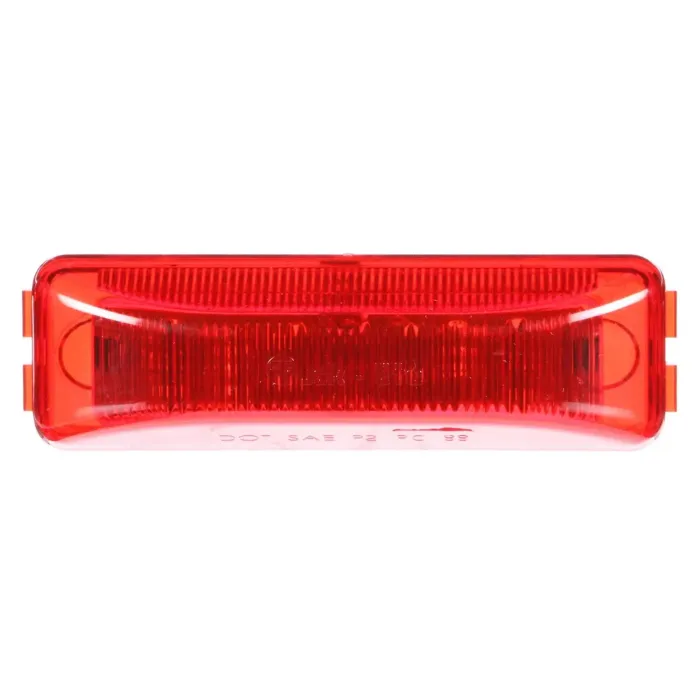

19 Series - LED - Red Rectangular - 4 Diode - Marker Clearance Light - PC2 - 19 Series Male Pin - 12V
$19.31
EA
19 Series - LED - Red Rectangular - 4 Diode - M/C Light - PC2 - 12V
Features & Benefits
Innovative optic design allows combination lamp to function as two - Draws less current - allowing more power for other vehicle requirements - Designed to fit applications requiring minimal space - Must be mounted horizontally - PC-rated lamps meets requirements when mounted on a 45-degree angle - Standard red lamps have 2 diode pattern - PC-rated red lamps and standard yellow lamps have 4 diode pattern - PC-rated yellow lamps have 6 diode pattern
Brand
TRUCK-LITE
Common Size
1 x 4
Current Major Amp
0.05
Housing Material
Polycarbonate
KIT
No
Lamp Connection
19 Series Male Pin
Lens Color
Red
Lens Height
1.23
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lens Width
3.78
Lighting Technology
LED
Mount Type
Bracket Mount
Number of Diodes/Bulbs
4
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
19 Series
Voltage
12
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
Standards Met
P2 | PC
UPC
0735111062936
UNSPSC
25172900
VMRS
034-004-253
Warranty
3-Year
Shipping Weight (lbs)
0.100000
Total Height
1.23
Total Width
3.78
