Advanced Edge Visibility: Engineered with a specialty snap-in lens offering a wide 90° edge-visibility radius to maximize side signaling protection on busy highways.
-
Corrosion-Resistant Kit: Includes everything needed for a seamless installation: a high-impact yellow lamp, a heavy-duty white mounting bracket, and necessary screws.
-
Vibration-Proof Hardwired Leads: Pre-wired directly out of the housing to prevent loose connections, featuring industry-standard .180 bullet terminals for quick plug-and-play hookup.
-
Rugged Commercial Construction: Sonically sealed polycarbonate lens and housing protect the internal assembly against moisture, heavy shock, dust, and debris.
-
Dual-Filament Performance: Runs on a standard #1157 dual-filament incandescent bulb, drawing a high-intensity 2.1 Major Amps for turn signals and a low-draw 0.5 Minor Amps for marker functions.

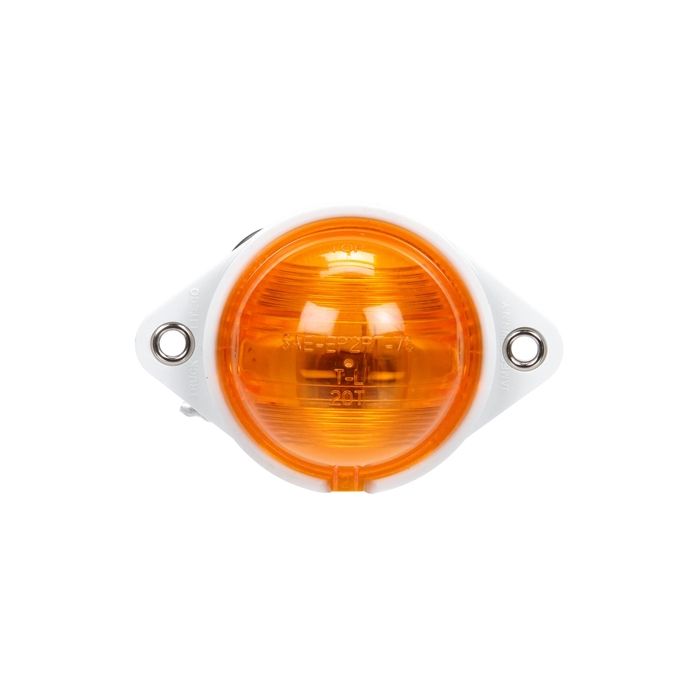

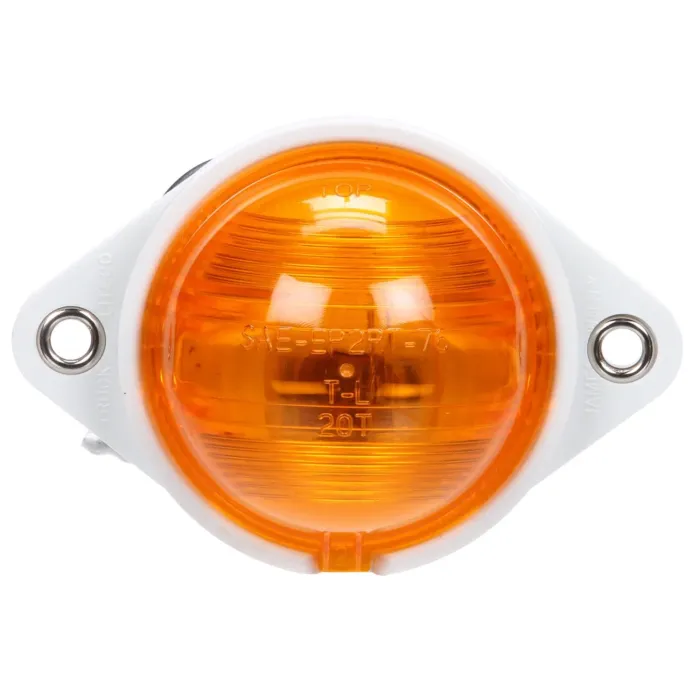

Truck-Lite 20316Y – 20 Series Yellow Round Incandescent Side Turn Signal Kit, White Bracket Mount, Hardwired .180 Bullet Terminal, 12V
Maintain complete compliance and highway safety with the Truck-Lite 20316Y Yellow Round Incandescent Side Turn Signal Kit. Belonging to the heavy-duty Truck-Lite 20 Series, this premium side-turn "beehive" style lamp features a snap-in lens engineered with a 90° maximum edge visibility profile, ensuring adjacent traffic clearly identifies your turn signals. Operating on standard 12V systems, this comprehensive installation kit includes a bright yellow round lamp, a durable white polycarbonate mounting bracket, and mounting hardware. For a secure connection that resists road moisture and vibrations, the light comes pre-hardwired featuring a 2-wire setup equipped with protective .180 bullet terminals, eliminating the need for complex field wiring or standalone pigtails.
- Grote: 80895, 50923
- NAPA: LIT20316Y
- Part Variations: 20316Y-TLT, TL20316Y, 20316YTLT, TK20316Y
