Dual-Contact Multi-Functionality: Safely operates as both a side turn or auxiliary turn signal and a dual-contact marker/clearance light within a single unit.
-
Exceeds Safety Standards: The high-visibility yellow/amber version exceeds rigid SAE J2039 side turn and marker requirements for commercial vehicles.
-
Versatile Mounting Setup: Engineered for a standard 2-screw surface mount directly onto the vehicle body or can be easily attached utilizing an optional "L" bracket.
-
Completely Sealed Construction: A heavy-duty polycarbonate lens and housing are permanently sealed together to provide a robust, moisture-proof barrier that guards internal components.
-
Ready-to-Install Kit: Comes complete with the lamp and a 3-wire right-angle PL-3 pigtail connection featuring stripped ends and a ring terminal to speed up fleet maintenance.
SKU
22002Y
Manufactures SKU
TRUCK-LITE 22002Y

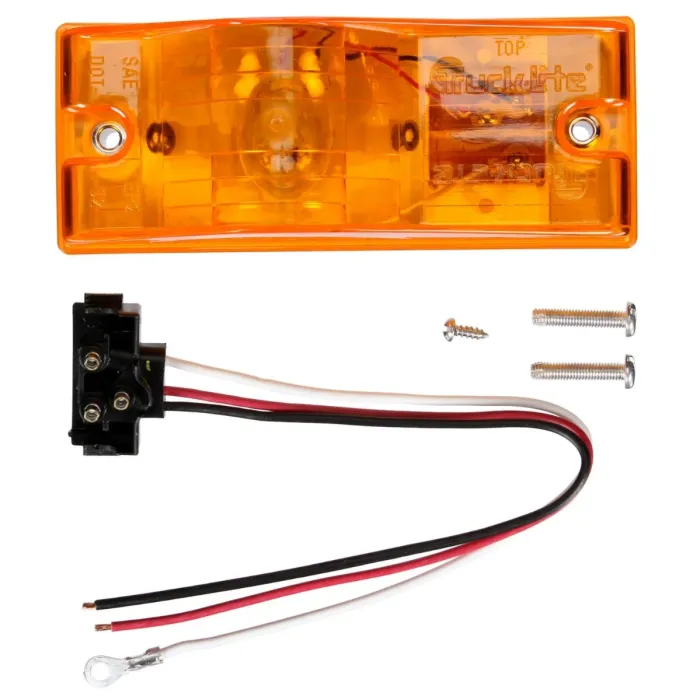

Truck-Lite 22002Y 22 Series Yellow Rectangular Incandescent Side Turn Signal Kit, 12V
$18.59
EA
Ensure reliable road signaling and heavy-duty compliance with the Truck-Lite 22002Y 22 Series Yellow Rectangular Side Turn Signal Kit. Designed to perform dual-contact functions, this versatile 2" x 6" lamp works seamlessly as both a side turn signal and a clearance/marker light. Built with a rugged, sealed polycarbonate lens and housing, this incandescent signal lamp is highly resilient against harsh weather and road vibrations. The complete kit includes a heavy-duty right-angle PL-3 plug that terminates in stripped wires and a ring terminal for a secure, professional electrical installation.
Features & Benefits
Brand
TRUCK-LITE
Common Size
2 x 6
Current Major Amp
2.1
Current Minor Amp
0.49
Housing Material
Polycarbonate
KIT
Yes
Lamp Connection
PL-3
Lens Color
Yellow
Lens Height
2.4
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lens Width
5.94
Lighting Technology
Incandescent
Mount Type
2 Screw
Number of Diodes/Bulbs
1
Number of Wires
3
Position
Side
Product Type
Turn Signal
Sealed/Bulb Replaceable
Sealed
Series
22 Series
Voltage
12
Wire Gauge
16
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
P2 | E
UPC
0735111040194
UNSPSC
25172900
VMRS
034-003-081
Warranty
1-Year
Shipping Weight (lbs)
0.480000
Total Height
2.4
Total Width
5.94
