Dual-Contact Multi-Functionality: Safely operates as both an auxiliary/side turn signal and a front/side marker clearance light, condensing your vehicle's lighting hardware needs.
-
Exceeds Safety Standards: The high-visibility yellow/amber lens design meets and exceeds rigid SAE J2039 side turn and marker requirements for commercial fleets.
-
Protective Mounting Gasket Included: Comes complete with a heavy-duty gasket that creates a tight, weather-resistant seal against the vehicle body while dampening road shock and vibration.
-
Permanently Sealed Housing: The robust polycarbonate lens and housing are sonic-welded together to deliver a moisture-proof and dustproof barrier that extends bulb life.
-

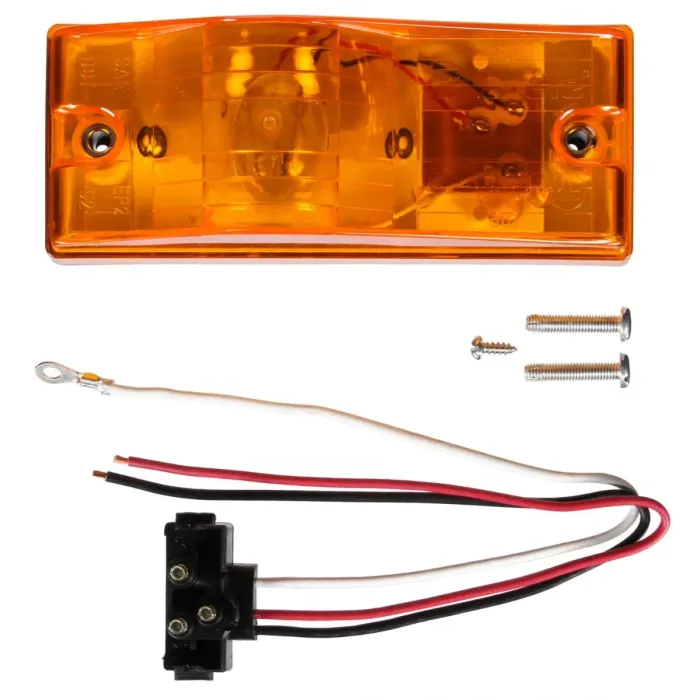

Complete Installation Kit: Packaged with the sealed lamp, a protective gasket, and a 3-wire right-angle PL-3 pigtail harness featuring a stripped-end/ring terminal finish for fast fleet retrofitting.
SKU
22004Y
Manufactures SKU
TRUCK-LITE 22004Y
Truck-Lite 22004Y 22 Series Yellow Rectangular Incandescent Side Turn Signal Kit with Gasket, 12V
$17.17
EA
Ensure premium mid-vehicle signaling and safety compliance with the Truck-Lite 22004Y 22 Series Yellow Rectangular Side Turn Signal Kit. This versatile, dual-contact 2" x 6" lamp assembly acts as both a side/auxiliary turn signal and a side marker/clearance light within a single unit. Engineered to endure harsh over-the-road environments, it features a rugged, impact-resistant polycarbonate lens and housing that are permanently sealed against dirt and moisture. This complete install-ready kit comes outfitted with a heavy-duty mounting gasket to cushion road vibrations, alongside a right-angle PL-3 plug terminating in stripped wires and a ring terminal for a secure, professional electrical hookup.
Features & Benefits
Brand
TRUCK-LITE
Common Size
2 x 6
Current Major Amp
2.1
Current Minor Amp
0.49
Housing Material
Polycarbonate
KIT
Yes
Lamp Connection
PL-3
Lens Color
Yellow
Lens Height
2.4
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lens Width
5.94
Lighting Technology
Incandescent
Mount Type
2 Screw
Number of Diodes/Bulbs
1
Number of Wires
3
Position
Side
Product Type
Turn Signal
Sealed/Bulb Replaceable
Sealed
Series
22 Series
Voltage
12
Wire Gauge
16
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
P2 | E
UPC
0735111137801
UNSPSC
25172900
VMRS
034-003-081
Warranty
1-Year
Shipping Weight (lbs)
0.490000
Total Height
2.4
Total Width
5.94
