Dual-Contact Multi-Functionality: Serves concurrently as an auxiliary side turn signal and a rear marker/clearance light, condensing your fleet's lighting infrastructure.
-
Rear-Vehicle Optimized Lens: Equipped with a rich, vibrant red lens that meets strict regulatory standards for side-marker and rear vehicle signal placements.
-
Vibration-Damping Foam Gasket: Includes a protective foam mounting gasket designed to cushion the light assembly from severe chassis vibration, extending bulb and component life.
-
Weatherproof Sealed Construction: Features a heavy-duty polycarbonate lens and housing permanently sonic-welded together to construct an airtight barrier against dirt, grime, and pressure washes.
-
Standard PL-3 Connection: Integrates an industry-standard PL-3 pin socket terminal for secure, plug-and-play installations utilizing your existing fleet wiring pigtails.
-
Flexible Surface Mounting: Tailored for a fast 2-screw surface mount directly flat onto the vehicle body or easily adapts to a right-angle layout using an optional "L" bracket.
SKU
22006R
Manufactures SKU
TRUCK-LITE 22006R

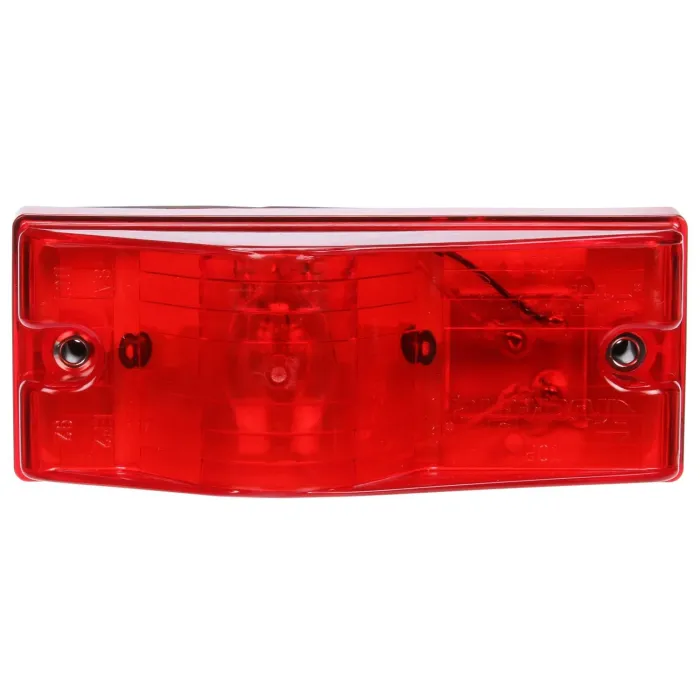

Truck-Lite 22006R 22 Series Red Rectangular Incandescent Side Turn Signal Light with Gasket, 12V
$16.96
EA
Maintain peak safety and DOT compliance for rear commercial vehicle positions with the Truck-Lite 22006R 22 Series Red Rectangular Side Turn Signal Light. This high-performance incandescent lamp utilizes a smart, dual-contact design that allows a single unit to serve two distinct safety purposes: a marker/clearance light and a side or auxiliary turn signal. Engineered for heavy-duty fleet operations, this unit comes equipped with a specialized foam mounting gasket that isolates the lamp from harsh road vibrations while sealing out dust and moisture. With its universally compatible PL-3 connection and robust surface-mount design, it makes retrofits or everyday maintenance on your commercial trucks or trailers quick and effortless.
Features & Benefits
Brand
TRUCK-LITE
Common Size
2 x 6
Current Major Amp
2.1
Current Minor Amp
0.49
Housing Material
Polycarbonate
KIT
No
Lamp Connection
PL-3
Lens Color
Red
Lens Height
2.4
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lens Width
5.94
Lighting Technology
Incandescent
Mount Type
2 Screw
Number of Diodes/Bulbs
1
Position
Side
Product Type
Turn Signal
Sealed/Bulb Replaceable
Sealed
Series
22 Series
Voltage
12
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
P2 | E
UPC
0735111040262
UNSPSC
25172900
VMRS
034-003-081
Warranty
1-Year
Shipping Weight (lbs)
0.400000
Total Height
2.4
Total Width
5.94
