Advanced Epoxy Encapsulation: Internal electronics are completely encapsulated in a heavy-duty epoxy layer, providing an impenetrable barrier against water entry, corrosion, and road salts.
-
Hermetically Sealed Design: Polycarbonate lens and housing are sonic-welded together to construct a permanent, moisture-proof seal that prevents condensation buildup.
-
Enhanced Shock & Vibration Resistance: Solid-state LED components and direct pin-to-circuit board solders ensure optimal performance on gravel roads and high-vibration truck applications.
-
Low Current Consumption: Efficient 3-diode layout draws minimal amperage (0.1A), drastically decreasing electrical strain compared to traditional incandescent cab lamps.
-
Complete Installation Base: Comes standard with a matching 97701 mounting gasket to establish a weather-resistant cushion against the vehicle shell while eliminating water leaks behind the mount.
-
Seamless Surface Retrofits: Outfitted with a convenient 2-screw surface mount footprint and a hardwired, stripped wire end harness for fast, hassle-free wire splicing.
SKU
25250Y
Manufactures SKU
TRUCK-LITE 25250Y

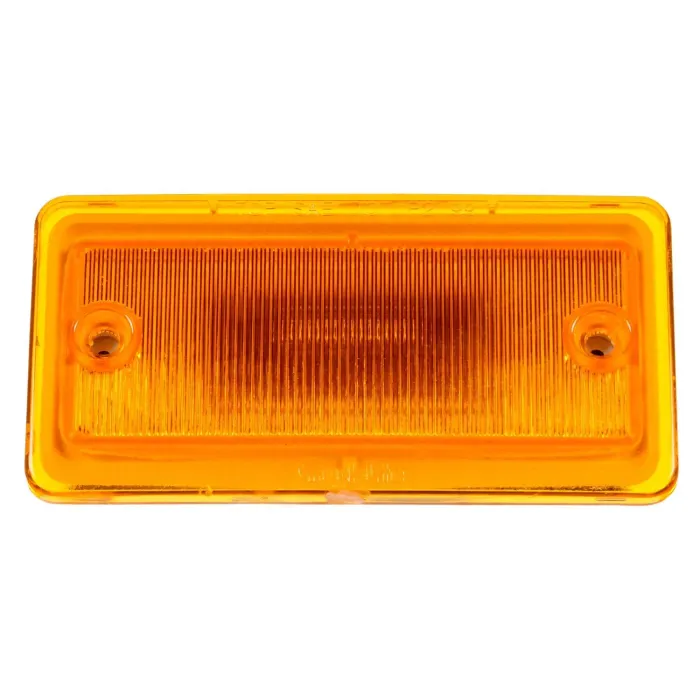

Truck-Lite 25250Y 25 Series Yellow Rectangular 3-Diode LED Marker Clearance Light, 12V
$31.75
EA
Ensure exceptional vehicle visibility and cab styling with the Truck-Lite 25250Y 25 Series Yellow Rectangular LED Marker Clearance Light. Frequently utilized as a premium cab marker lamp for commercial trucks, trailers, and utility fleets, this high-performance 2" x 5" light features a specialized 3-diode configuration that provides uniform amber illumination. Built to conquer severe weather, its hermetically sealed polycarbonate lens and housing encapsulate electronics entirely in premium epoxy, shielding them from moisture, corrosion, and severe road shock. Outfitted with a simple, hardwired 2-wire setup with stripped ends, this P2-rated light mounts effortlessly flush onto surface spaces.
Features & Benefits
Brand
TRUCK-LITE
Common Size
2 x 5
Current Major Amp
0.1
Housing Material
Polycarbonate
KIT
No
Lamp Connection
Hardwired
Lens Color
Yellow
Lens Height
2.42
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lens Width
4.73
Lighting Technology
LED
Mount Type
2 Screw
Mount/Trim Color
Yellow
Number of Diodes/Bulbs
3
Number of Wires
2
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
25 Series
Voltage
12
Wire Gauge
18
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
Standards Met
P2 | PC
UPC
0735111063780
UNSPSC
25172900
VMRS
034-004-253
Warranty
Lifetime
Shipping Weight (lbs)
0.210000
Total Height
2.42
Total Width
4.73
