Advanced Epoxy Encapsulation: Internal circuitry is completely sealed in heavy-duty epoxy, providing an unyielding defense against water, salt spray, and chemical corrosion.
-
Hermetically Sealed Lens & Housing: The impact-resistant acrylic lens and polycarbonate housing are permanently sonic-welded together to eliminate condensation and moisture buildup.
-
Dual P2 & PC Regulatory Compliance: Engineered to meet strict FMVSS 108 standards, working perfectly as both a side marker and a clearance lamp to maximize safety.
-
Vibration-Proof Design: Direct pin-to-circuit board solders keep the 6-diode pattern running flawlessly through severe road shock and trailer vibrations.
-
Integrated PE Connector: Pre-wired and hardwired with a premium 2-wire PE (Packard-style) connector, simplifying wiring while defending against wire-end oxidation.
-
Low Current Demand: Draws a mere 0.12 Amps, leaving maximum electrical capacity for other demanding truck, trailer, or agricultural equipment functions.
SKU
25256Y
Manufactures SKU
TRUCK-LITE 25256Y

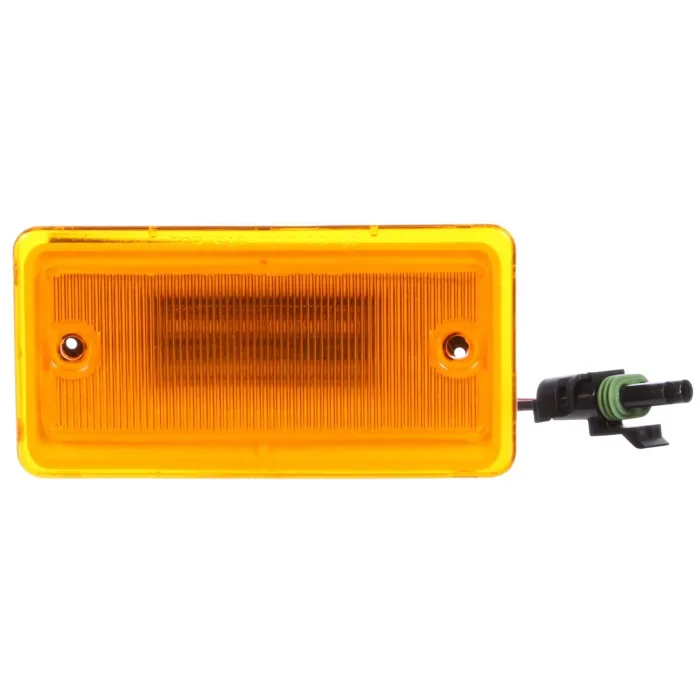

Truck-Lite 25256Y 25 Series Yellow Rectangular 6-Diode LED Marker Clearance Light Kit, 12V
$52.17
EA
Optimize your vehicle's safety profile with the Truck-Lite 25256Y 25 Series Yellow Rectangular LED Marker Clearance Light Kit. Designed for premium heavy-duty performance, this 2" x 5" surface-mount light features a high-visibility 6-diode pattern that delivers a clear, uniform amber beam. Boasting dual P2 and PC compliance ratings, this single unit satisfies multi-directional safety lighting requirements depending on its placement. Built to last, its electronics are fully encapsulated in rugged epoxy, making the solid-state design impervious to moisture, road vibration, and extreme environments. This complete installation kit comes hardwired with an integrated Packard-style PE connector for a reliable, plug-and-play fit.
Features & Benefits
Brand
TRUCK-LITE
Common Size
2 x 5
Current Major Amp
0.12
Housing Material
Polycarbonate
KIT
Yes
Lamp Connection
Hardwired
Lens Color
Yellow
Lens Height
2.41
Lens Material
Acrylic
Lens Shape
Rectangular
Lens Width
4.73
Lighting Technology
LED
Mount Type
2 Screw
Mount/Trim Color
Yellow
Number of Diodes/Bulbs
6
Number of Wires
2
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
25 Series
Voltage
12
Wire Gauge
18
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
Standards Met
P2 | PC
UNSPSC
25172900
VMRS
034-004-253
Warranty
1-Year
Shipping Weight (lbs)
1.000000
Total Height
4.73
Total Width
2.42
