SKU
25750Y
Manufactures SKU
TRUCK-LITE 25750Y

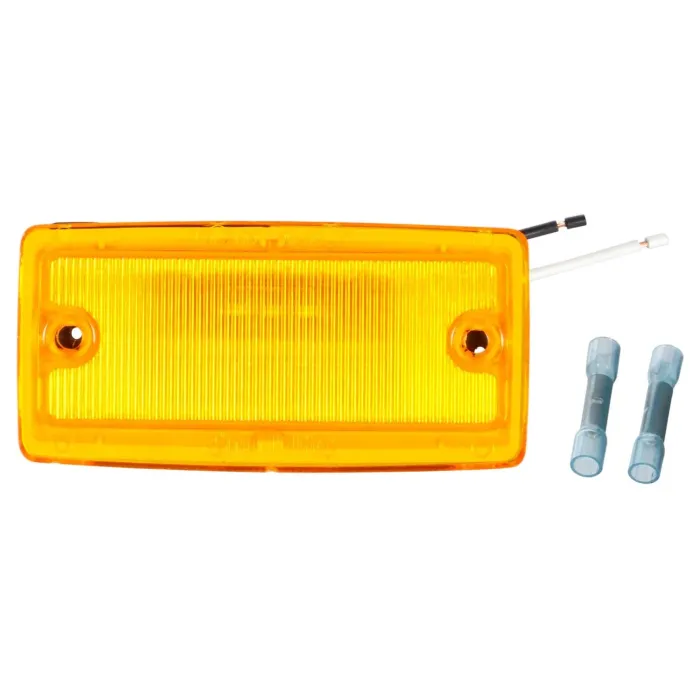

25 Series - LED - Yellow Rectangular - 3 Diode - Marker Clearance Light - P2 - 2 Screw Flush Mount - Hardwired - Stripped End - 12V
$36.58
EA
25 Series - LED - Yellow Rectangular - 3 Diode - M/C Light - P2 - 2 Screw Flush - 12V
Features & Benefits
25750Y features hardwired connections with optional field-installable butt-splice connectors - Hermetically sealed lens and housing - Electronics completely sealed in epoxy to resist corrosion and moisture - Less susceptible to shock and vibration - Draws less current - allowing more power for other vehicle requirements - Direct pin-to-circuit board solders assure vibration-resistant contacts - Includes 97701 mounting gasket with #25250R/Y and 25750Y - 25750Y is legal when mounted 0 to 40 degree rollback from vertical
Brand
TRUCK-LITE
Common Size
2 x 5
Current Major Amp
0.1
Housing Material
Polycarbonate
KIT
No
Lamp Connection
Hardwired
Lens Color
Yellow
Lens Height
2.23
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lens Width
4.73
Lighting Technology
LED
Mount Type
2 Screw
Mount/Trim Color
Yellow
Number of Diodes/Bulbs
3
Number of Wires
2
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
25 Series
Voltage
12
Wire Gauge
18
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
Standards Met
P2 | PC
UPC
0735111040385
UNSPSC
25172900
VMRS
034-004-253
Warranty
Lifetime
Shipping Weight (lbs)
0.500000
Total Height
2.42
Total Width
4.54
