SKU
25761Y
Manufactures SKU
TRUCK-LITE 25761Y

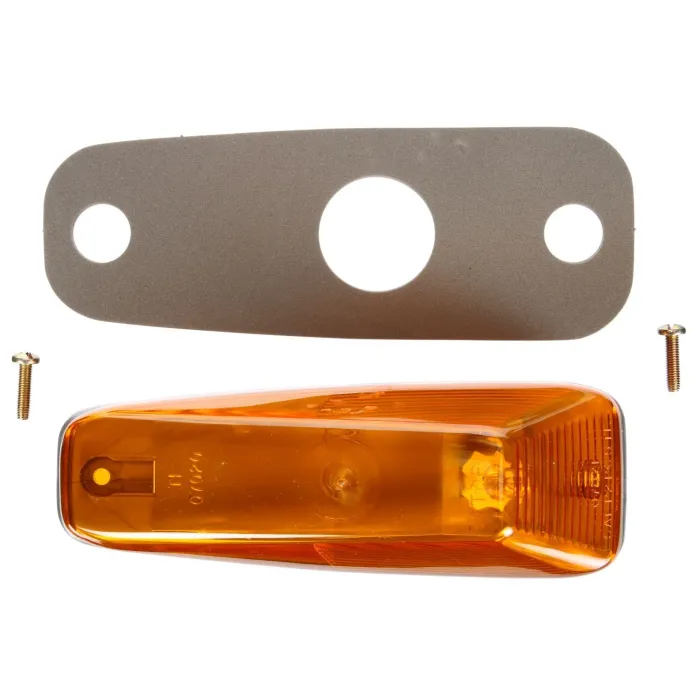

25 Series - Incandescent - Yellow Triangular - 1 Bulb - Marker Clearance Light - PC - Gray Polycarbonate 2 Screw Surface Mount - Socket Assembly - Ring Terminal/Stripped End - 12V
$20.56
EA
25 Series - Incan. - Yellow Triangular - 1 Bulb - M/C Light - PC - Gray 2 Screw Surface - 12V
Features & Benefits
Features Snap-On lens and base mounting for quick bulb replacement - Replace standard lamps used on many Mack trucks - Contains one #194 wedge base bulb and #94940 plug assembly - Mounting gasket #07022 included to improve seal between lamp and body - Suitable for PC requirements on a 45-degree angle
Brand
TRUCK-LITE
Common Size
3 x 6
Current Major Amp
0.27
Housing Material
Polycarbonate
KIT
No
Lamp Connection
Socket Assembly
Lens Color
Yellow
Lens Height
2.18
Lens Material
Polycarbonate
Lens Shape
Triangular
Lens Width
6.93
Lighting Technology
Incandescent
Mount Type
2 Screw
Mount/Trim Color
Gray
Mount/Trim Material
Polycarbonate
Number of Diodes/Bulbs
1
Number of Wires
2
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Bulb Replaceable
Series
25 Series
Voltage
12
Wire Gauge
16
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
Standards Met
P2 | PC
UPC
0735111011002
UNSPSC
25172900
VMRS
034-004-028
Warranty
1-Year
Shipping Weight (lbs)
0.450000
Total Height
2.5
Total Width
7.5
