Integrated Reflectorized Optics: Engineered with built-in reflex lens properties (SAE Rating A), eliminating the need for separate stick-on reflectors to satisfy DOT road rules for rear vehicle corners.
-
Sonically Sealed Construction: Heavy-duty red polycarbonate lens and matching housing are permanently sonically welded together to form a highly resilient barrier against weather and high-pressure truck washes.
-
Economical Bulb-Replaceable Design: Simple internal socket assembly allows you to replace only the bulb or plug rather than discarding the entire housing, saving fleet maintenance costs.
-
Strict Regulatory Compliance: Certified to exceed strict FMVSS 108 requirements with a definitive P2 rating for standard rear side marker configurations.
-
Simple 2-Screw Bolt-On Mount: Fast surface installation layout makes replacing weathered, cracked, or dim factory lighting units completely painless.
SKU
25766R
Manufactures SKU
TRUCK-LITE 25766R

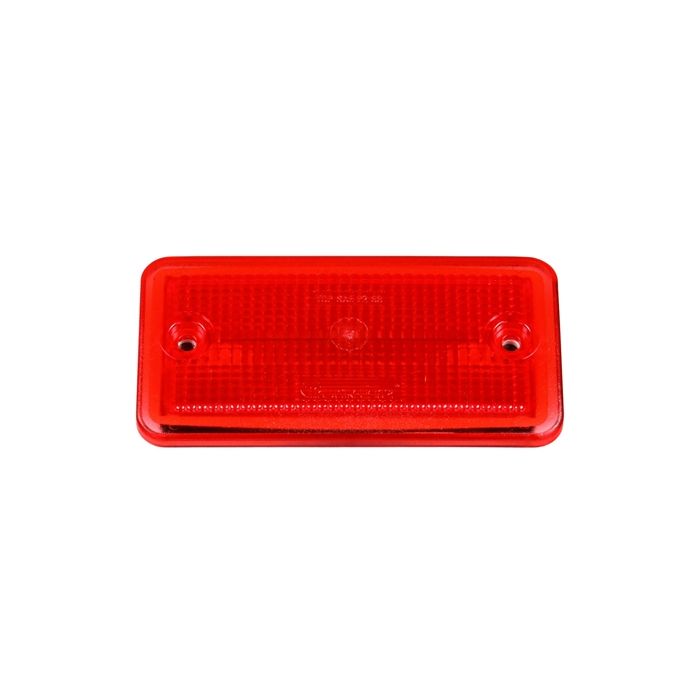

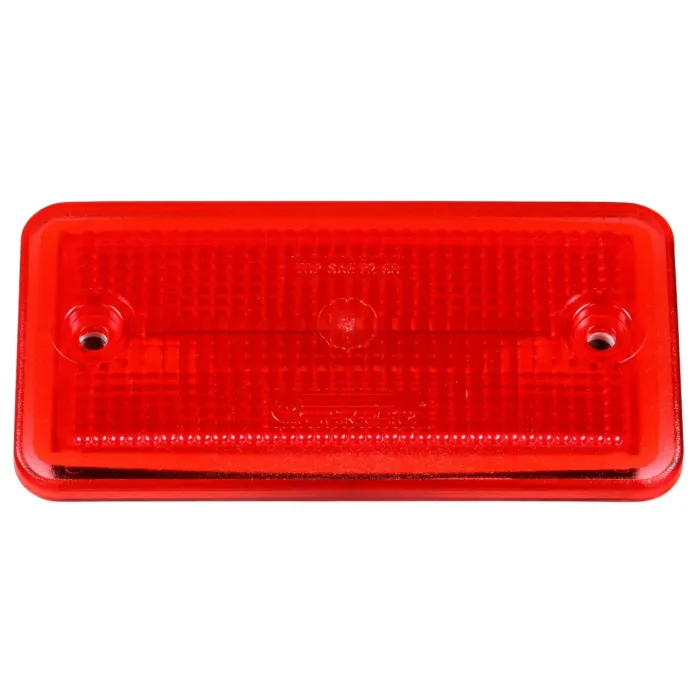

Truck-Lite 25766R 25 Series Red Rectangular Incandescent Marker Clearance Light, 12V
$6.58
EA
Maintain original equipment standards and ensure vehicle compliance with the Truck-Lite 25766R 25 Series Red Rectangular Incandescent Marker Clearance Light. Widely recognized for heavy-duty commercial truck and trailer rear-positioning applications, this classic 2" x 5" class marker and side clearance light delivers exceptional reliability. Built with a rugged, sonically sealed polycarbonate lens and housing, it completely seals out dust, dirt, and moisture. This bulb-replaceable unit features an integrated socket assembly and an uncompromised reflectorized reflex lens pattern, allowing your fleet vehicle to remain fully visible and legally compliant even when the lamp is turned off.
Features & Benefits
Brand
TRUCK-LITE
Common Size
2 x 5
Housing Material
Polycarbonate
KIT
No
Lamp Connection
Socket Assembly
Lens Color
Red
Lens Height
2.42
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lens Width
4.74
Lighting Technology
Incandescent
Mount Type
2 Screw
Mount/Trim Color
Red
Mounting Connector Diameter
0.203
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Bulb Replaceable
Series
25 Series
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
Standards Met
A | P2
UPC
0735111011033
UNSPSC
25172900
VMRS
034-004-253
Warranty
1-Year
Shipping Weight (lbs)
0.150000
Total Height
2.42
Total Width
4.74
