SKU
2674A
Manufactures SKU
TRUCK-LITE 2674A

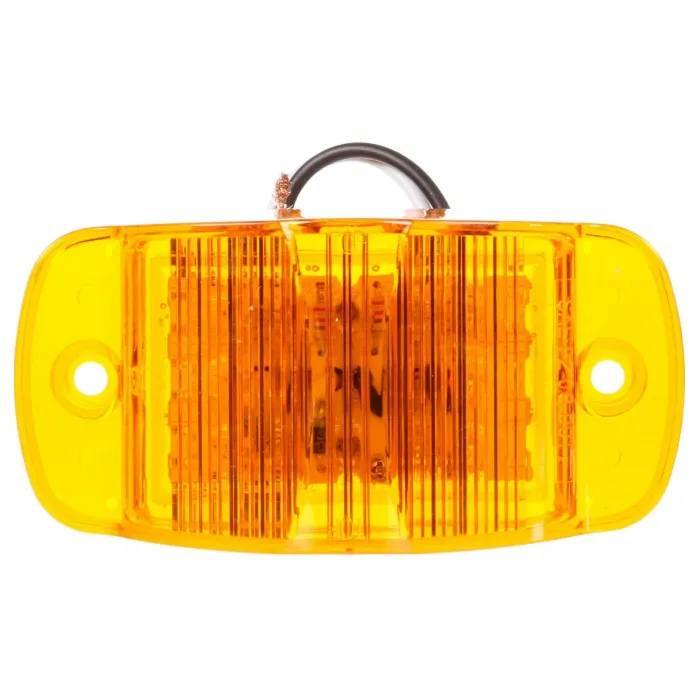

Signal-Stat - LED - Amber Rectangular - 8 Diodes - Marker Clearance Light - P3 - Amber Polycarbonate Surface Mount - Hardwired - Stripped End - 12V
$12.68
EA
Signal-Stat - LED - Amber Rectangular - 8 Diodes - M/C Light - P3 - Amber Surface - 12V
Features & Benefits
14 diode pattern - Hardwired design eliminates pin corrosion - SAE PC-rated for combination clearance/marker applications - Fits standard mounting holes - LEDs have no filament - therefore are extremely resistant to shock and vibration - LEDs have less current draw - resulting in increased battery and alternator life while allowing more power for other vehicle requirements - Epoxy-encapsulated electronics protect the lamp from damage caused by chemicals and moisture - Unique LED array displays full pattern output
Brand
Signal-Stat
Common Size
2 x 4
Current Major Amp
0.07
Housing Material
Polycarbonate
KIT
No
Lamp Connection
Hardwired
Lens Color
Yellow
Lens Height
1.97
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lens Width
3.92
Lighting Technology
LED
Mount Type
2 Screw
Mount/Trim Color
Yellow
Mount/Trim Material
Polycarbonate
Number of Diodes/Bulbs
8
Number of Wires
2
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
Signal-Stat
Voltage
12
Wire Gauge
18
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
Standards Met
P3
UPC
0735111171430
UNSPSC
25172900
VMRS
034-004-021
Warranty
2-Year
Shipping Weight (lbs)
0.170000
Total Height
1.97
Total Width
3.92
