Durable Construction: Rugged black zinc housing protects internal components from the elements.
-
High Visibility: Features a 4" red acrylic round lens for clear signaling.
-
Easy Installation: Single-stud mount with a universal orientation and hardwired stripped-end connection.
-
Serviceable: Bulb-replaceable design (Incandescent technology) ensures you don’t have to replace the entire unit if a bulb burns out.
-
Compact Dimensions: Measuring 4.13" H x 4.63" W x 2" D, it fits perfectly on various truck and trailer configurations.
-
Future-Proof: Compatible with LED upgrade options (Truck-Lite #2751, 2751A, and 2750).
SKU
2701
Manufactures SKU
TRUCK-LITE 2701

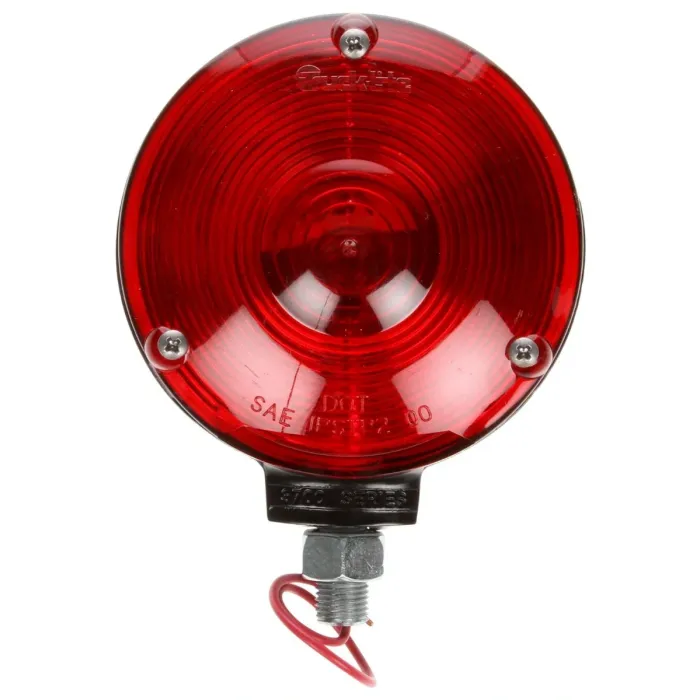

Truck-Lite 2701 Signal-Stat 4" Round Single Face Pedestal Light - Red Lens, Black Zinc Housing
$32.72
EA
Reliable Visibility for Narrow-Body Vehicles
The Truck-Lite 2701 Signal-Stat series pedestal light is a heavy-duty, single-face signaling solution designed for vehicles under 80 inches wide. Engineered with a durable black die-cast zinc housing and a high-impact acrylic lens, this 4-inch round light provides long-lasting performance in demanding environments.
Versatile & Maintainable Design
Featuring a universal 1-stud mount and a single-wire, hardwired connection with a stripped end, the 2701 is designed for easy installation on both the left and right sides of your vehicle. Unlike sealed units, this pedestal light features a bulb-replaceable design, allowing for cost-effective maintenance and a longer service life.
Key Details
Brand
Signal-Stat
Common Size
4
Current Major Amp
2.1
Housing Color
Black
Housing Material
Zinc
KIT
No
Lamp Connection
Hardwired
Lens Color
Red
Lens Height
4.13
Lens Material
Acrylic
Lens Shape
Round
Lens Width
4.13
Lighting Technology
Incandescent
Mount Type
1 Stud Mount
Mounting Connector Diameter
0.5
Mounting Orientation
Universal
Number of Diodes/Bulbs
1
Number of Faces
Single Face
Number of Wires
1
Position
Universal
Product Type
Pedestal Light
Sealed/Bulb Replaceable
Bulb Replaceable
Series
Signal-Stat
Voltage
12
Wire Gauge
16
Compliance Family
FMVSS 108 | DOT | SAE
Standards Met
I | S
UPC
0724956084241
UNSPSC
25172900
VMRS
034-002-001
Warranty
1-Year
Shipping Weight (lbs)
0.680000
Total Height
4.13
Total Width
4.63
