SKU
27011
Manufactures SKU
TRUCK-LITE 27011

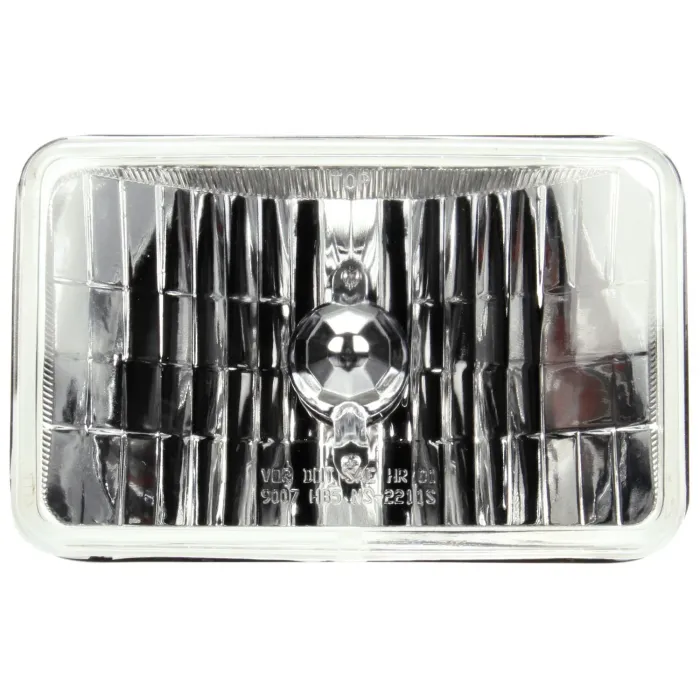

4"x6" Rectangular Halogen 1 Bulb Headlight - Glass Lens - Die-Cast Aluminum - 12V - Kit
$62.16
EA
4"x6" Rectangular - Halogen - 12V - Headlight - Kit
Features & Benefits
Exceeds DOT minimum requirements by an average of 300% low beam and 225% high beam - Review for appropriate bucket fit for installing - Retrofits ANSI #H4656 - Adapter #95846 may be needed to retrofit - included with kit - Not recommended for certain buckets on Freightliner - Kenworth or Western Star Trucks
Beam Pattern
High | Low
Brand
TRUCK-LITE
Common Size
4 x 6
Current Major Amp
5.08
Current Minor Amp
4.3
Housing Material
Die-Cast Aluminum
KIT
Yes
Lamp Connection
H5 Connector
Lens Color
Clear
Lens Height
4
Lens Material
Glass
Lens Shape
Rectangular
Lens Width
6
Lighting Technology
Halogen
Number of Diodes/Bulbs
1
Number of Wires
3
Product Type
Headlight
Sealed/Bulb Replaceable
Bulb Replaceable
Voltage
12
Wire Gauge
16
Compliance Family
CMVSS 108 | FMVSS 108 | DOT
UPC
0735111139331
UNSPSC
25172900
VMRS
034-001-000
Warranty
1-Year
Shipping Weight (lbs)
3.000000
Total Height
4.19
Total Width
6.39
