SKU
2702
Manufactures SKU
TRUCK-LITE 2702

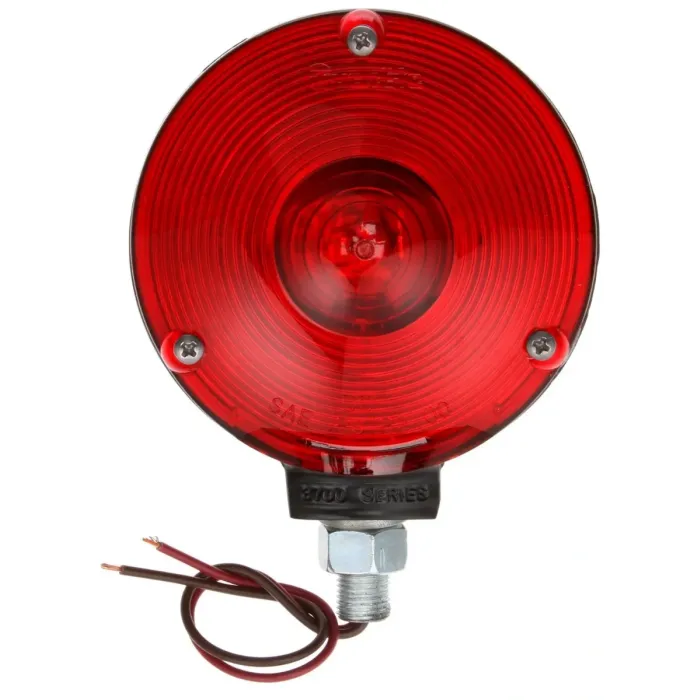

Signal-Stat - Incandescent - Red Round - 1 Bulb - Single Face - 2 Wire - Pedestal Light - 1 Stud - Black - Stripped End
$31.97
EA
Signal-Stat - Single Face - Incan. - Red Round - 1 Bulb - Black - 2 Wire - Pedestal Light
Features & Benefits
For vehicle application with vehicle width over 80" wide - Two wire - stop - tail - turn lamp - LED Upgrade options available #2751 and 2751A
Brand
Signal-Stat
Common Size
4
Current Major Amp
2.1
Current Minor Amp
0.59
Housing Color
Black
Housing Material
Zinc
KIT
No
Lamp Connection
Hardwired
Lens Color
Red
Lens Height
4.13
Lens Material
Acrylic
Lens Shape
Round
Lens Width
4.13
Lighting Technology
Incandescent
Mount Type
1 Stud Mount
Mounting Connector Diameter
0.5
Mounting Orientation
Universal
Number of Diodes/Bulbs
1
Number of Faces
Single Face
Number of Wires
2
Position
Universal
Product Type
Pedestal Light
Sealed/Bulb Replaceable
Bulb Replaceable
Series
Signal-Stat
Voltage
12
Wire Gauge
16
Compliance Family
FMVSS 108 | DOT | SAE
Standards Met
I | S | T
UPC
0724956084265
UNSPSC
25172900
VMRS
034-002-001
Warranty
1-Year
Shipping Weight (lbs)
0.930000
Total Height
4.13
Total Width
4.63
