SKU
2752
Manufactures SKU
TRUCK-LITE 2752

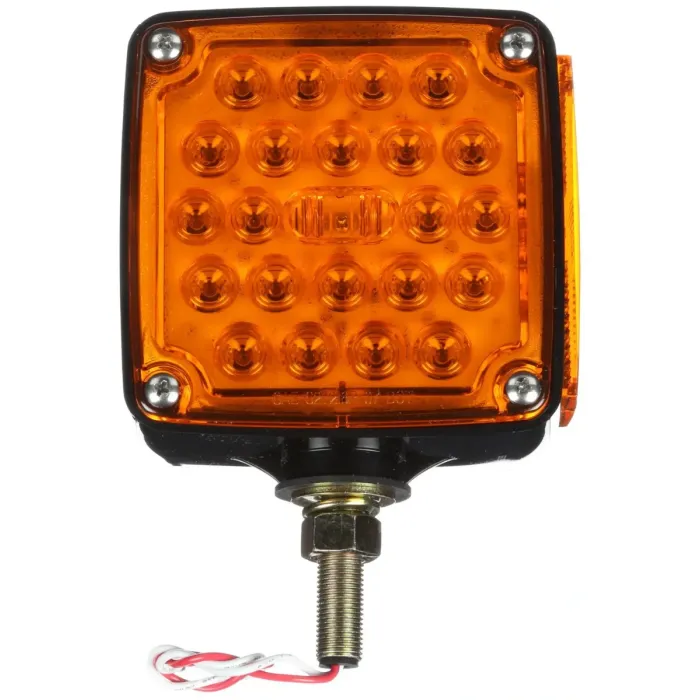

Signal-Stat - LED - Yellow/Yellow Square - 24 Diode - Dual Face - Vertical Mount - Side Marker - 2 Wire - Pedestal Light - 1 Stud - Chrome - Stripped End/Ring Terminal
$70.21
EA
Signal-Stat - Dual Face - Vertical Mount - LED - Yellow/Yellow Square - 24 Diode - Chrome - 2 Wire - Pedestal Light
Features & Benefits
Ideal for show trucks - highway - mowing - municipal and farm equipment - Unique LED array displays full pattern output - Side marker reflex reflector - LEDs have no filament - therefore are extremely resistant to shock and vibration - LEDs have less current draw - resulting in increased battery and alternator life while allowing more power for other vehicle requirements - Chrome plated housing - Meets SAE J974 for agricultural warning devices - Epoxy-encapsulated electronics protect the lamp from damage caused by chemicals and moisture
Brand
Signal-Stat
Common Size
4.5 x 4.5
Current Major Amp
0.45
Housing Color
Chrome
Housing Material
ABS
KIT
No
Lamp Connection
Hardwired
Lens Color
Yellow
Lens Height
4.54
Lens Material
Polycarbonate
Lens Shape
Square
Lens Width
4.54
Lighting Technology
LED
Mount Type
1 Stud Mount
Mounting Connector Diameter
0.5
Mounting Orientation
Vertical
Number of Diodes/Bulbs
24
Number of Faces
Dual Face
Number of Wires
2
Position
Universal
Product Type
Pedestal Light
Sealed/Bulb Replaceable
Sealed
Series
Signal-Stat
Voltage
12
Wire Gauge
18
Compliance Family
FMVSS 108 | DOT | SAE
Standards Met
I6 | J974
UPC
0735111173793
UNSPSC
25172900
VMRS
034-003-141
Warranty
2-Year
Shipping Weight (lbs)
1.390000
Total Height
4.92
Total Width
4.74
